7.500€
Specifications
| Input sensitivity/ input impedance | PHONO (MM): 2.0mV/47kΩ PHONO (MC high): 0.3mV/100Ω PHONO (MC low): 0.08mV/30Ω LINE: 190mV/50kΩ BAL.LINE: 190mV/20kΩ *2 |
|---|---|
| Output/output impedance | Rated 1V/300Ω |
| Frequency response | PHONO: 20Hz to 20kHz (±0.5dB) LINE/BAL.LINE: 10Hz to 70kHz (within -3.0dB) |
| Total harmonic distortion | 0.006% or less (1kHz) 0.06% or less (20Hz to 20kHz) |
| S/N ratio (IHF-A) | PHONO (MM): 68dB or more PHONO (MC high): 63dB or more PHONO (MC low): 60dB or more LINE/BAL.LINE: 100dB or more |
| Tone control | ±8dB, selectable frequency range BASS: 150/300/600Hz, TREBLE: 1.5k/3k/6kHz |
|---|---|
| Low cut | 30Hz(-6dB/oct.) |
| Circuit | SRPP |
| Vacuum tubes | ECC83S×3, ECC82×5 |
| Power supply | 230V~(50Hz)/115V~(60Hz) |
| Power consumption | 35W |
| External dimensions | 440(W) x 169(H) x 307(D) mm 19mm front panel knob of and 12mm rear panel terminals are included in the depth measurement |
| Net weight | 13.3kg (main unit) |

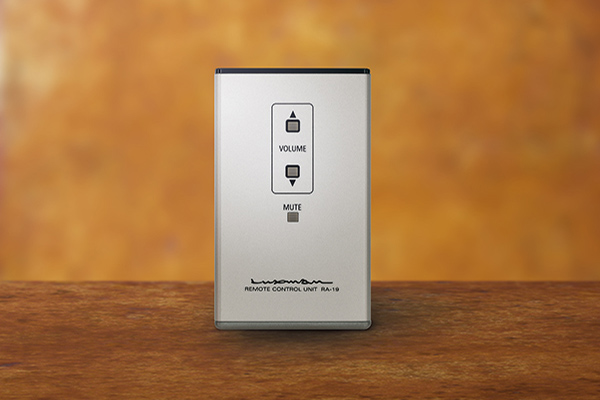

| Accessories | Remote control (RA-19), Power cable |
