| MAIN BODY | |
| Drive System | Belt Drive, Surface polished polyurethane fiber flat belt |
| Platter: Main Platter | SUS316L Non-magnetic forged stainless steel. Weight 19 kg |
| Platter: Upper Platter | Choice of A7075 (4 kg) or Pure TITANIUM (6 kg) |
| Motor | AC synchronous motor. Rotating speed controlled by DC amplifier. |
| Chassis | Three different material sandwiched structure |
| Rotation Speed | 33-1/3 rpm / 45 rpm with precise speed adjustment function |
| Wow & Flutter | below 0.03% (W.R.M.S) |
| Minimum Dimensions for setting up | 680 (W) x 480 (D) mm |
| Total Weight | 73 kg |
| POWER SUPPLY & PUMP UNIT | |
| Power Supply / Pump Unit | Power consumption: 60W Dimension and weight : 430(W) x 160(H) x 240(D) mm, 10kg |
| Air Condenser / Air Charger Unit | Dimension: 430 (W) x 160 (H) x 240 (D) mm, 10kg |
| ACCESSORIES | |
| Accessories Supplied | Tonearm base x 1 (drilled for specified tonearm) Platter cover “The Platter Top” x 1 TechDAS Disc Stabilizer x 1 AC cable x 1 |

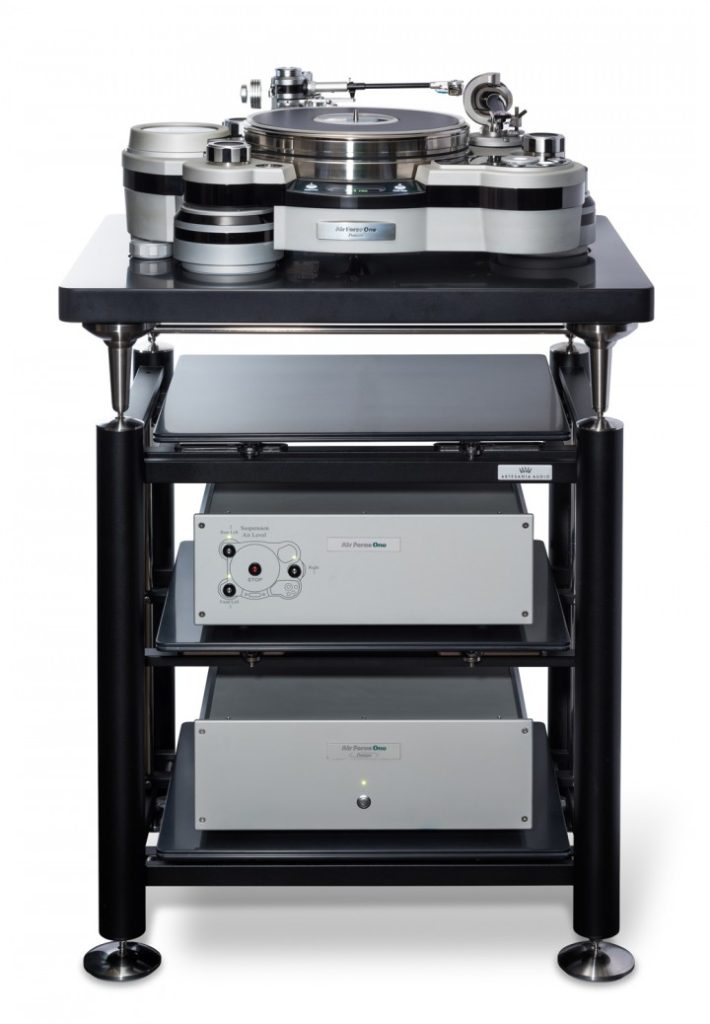

| Optional Items & Accessories | Extra Tonearm Base (Stainless, Pure Titanium, Aluminum) Air Force Mounting Rack |
