8.150€
| Rated output | 25W + 25W (4Ω, 8Ω, 16Ω) |
| Input sensitivity | 890mV/25W |
| input impedance | 32kΩ |
| Frequency response | 20Hz to 20kHz (+0, -0.5dB) 10Hz to 100kHz (+0, -3.0dB) |
| Total harmonic distortion | 0.1% (1kHz/1W) 0.5% (20Hz to 20kHz/1W) |
| S/N ratio (IHF-A) | 105dB |

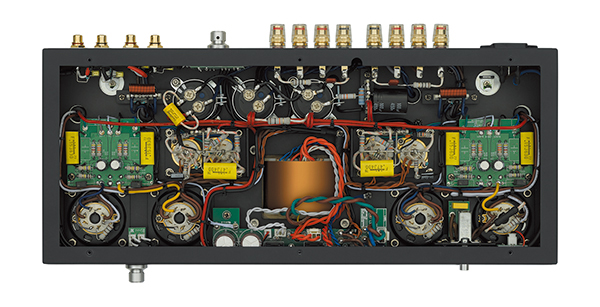

| Circuit | Driver: Mullard, Output tubes: Triode connection |

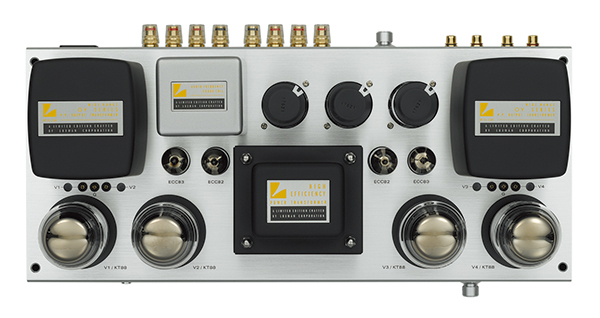

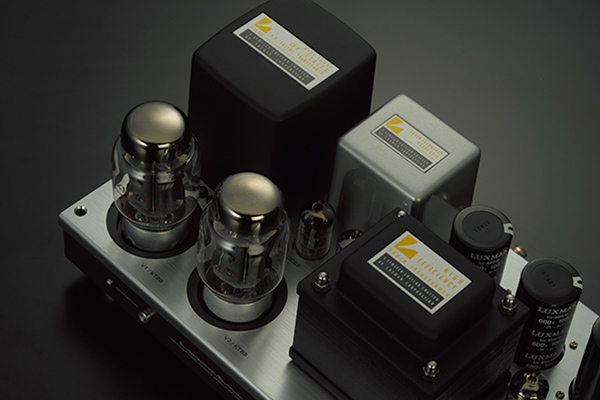

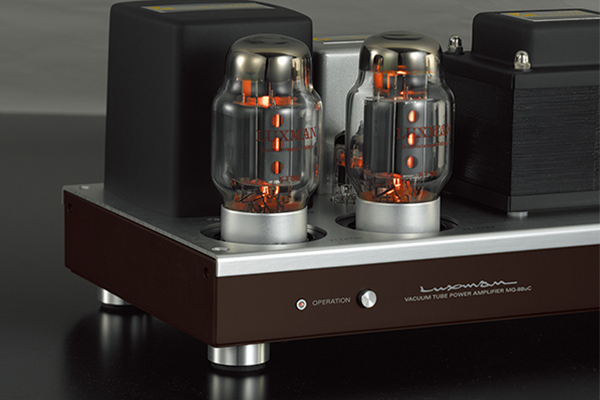

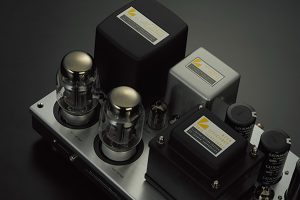

| Vacuum tubes | ECC83S×2, ECC82×2, KT88×4 |
| Power supply | 230V~(50Hz)/115V~(60Hz) |
| Power consumption | 170W, 140W (under no signal) |
| External dimensions | 440(W) x 184(H) x 230(D) mm 17mm front panel knob of and 28mm rear panel terminals are included in the depth measurement |
| Net weight | 16.1kg (main unit) |
| Accessories | Power cable |

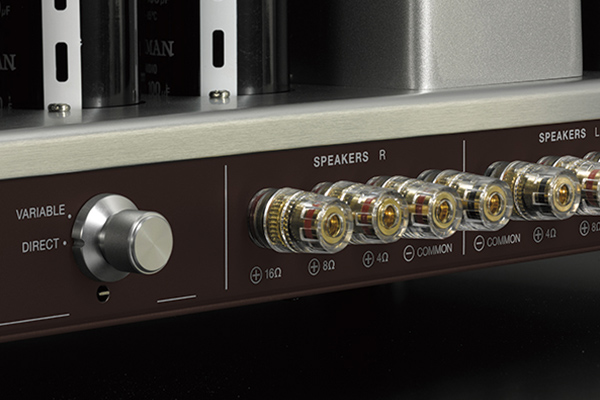

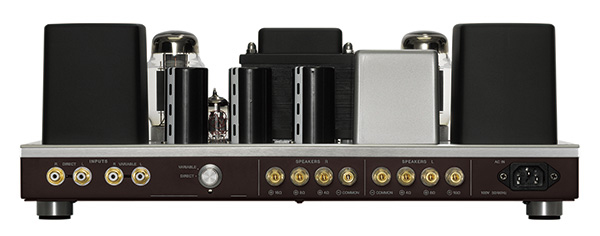

| Speaker terminal Supported Y-lug terminal dimension | Width of part a: 14.5mm or less Width of part b: 7.5mm or more *Connection may be difficult depending on the shape of the Y-lug terminal. |
