Technical Data

FREQUENCIES: transmission range25 Hz – 40 kHz

CONSTRUCTION

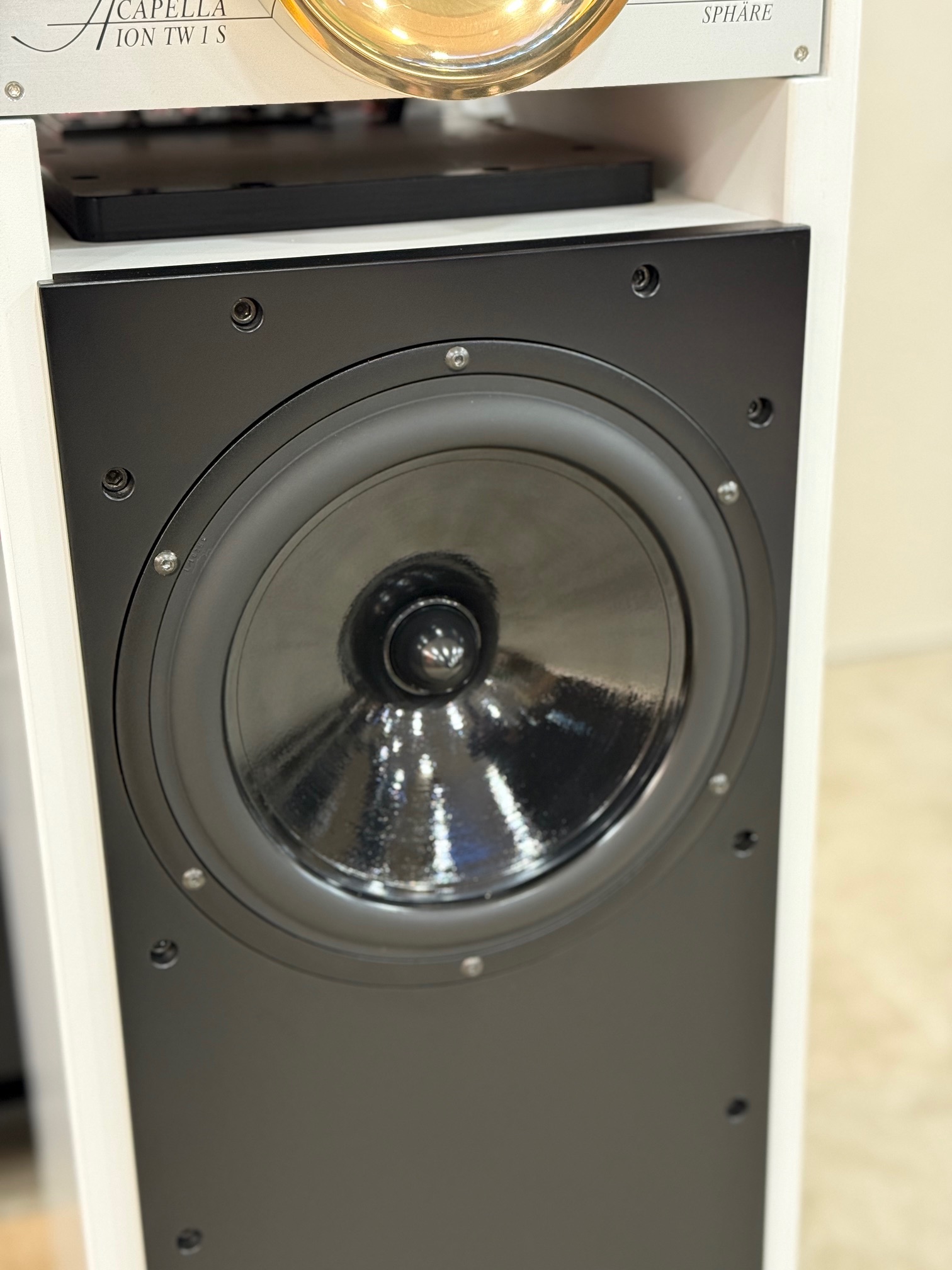

BASS: 1 x 10″ driver; 2 x 10″ driver high

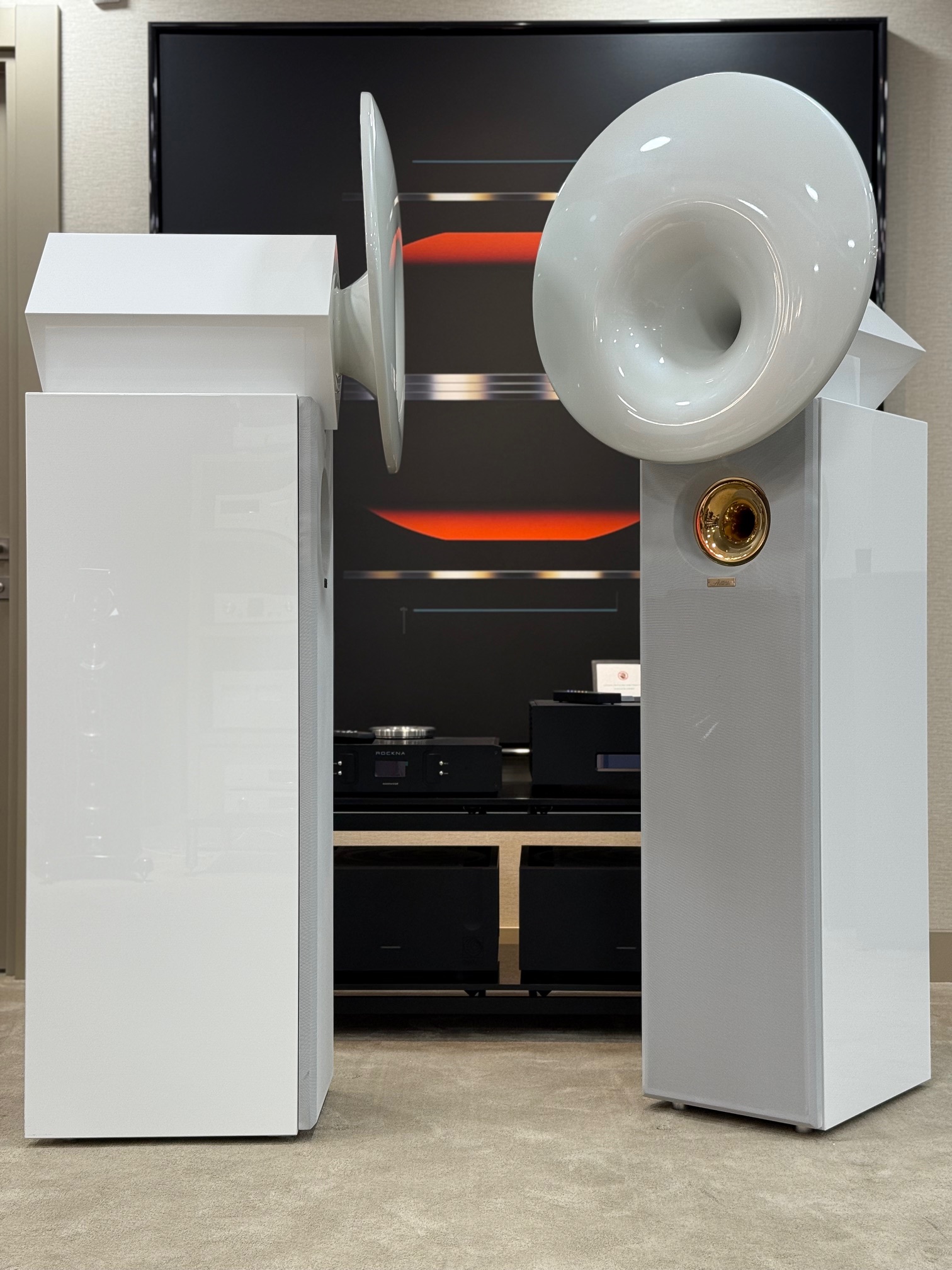

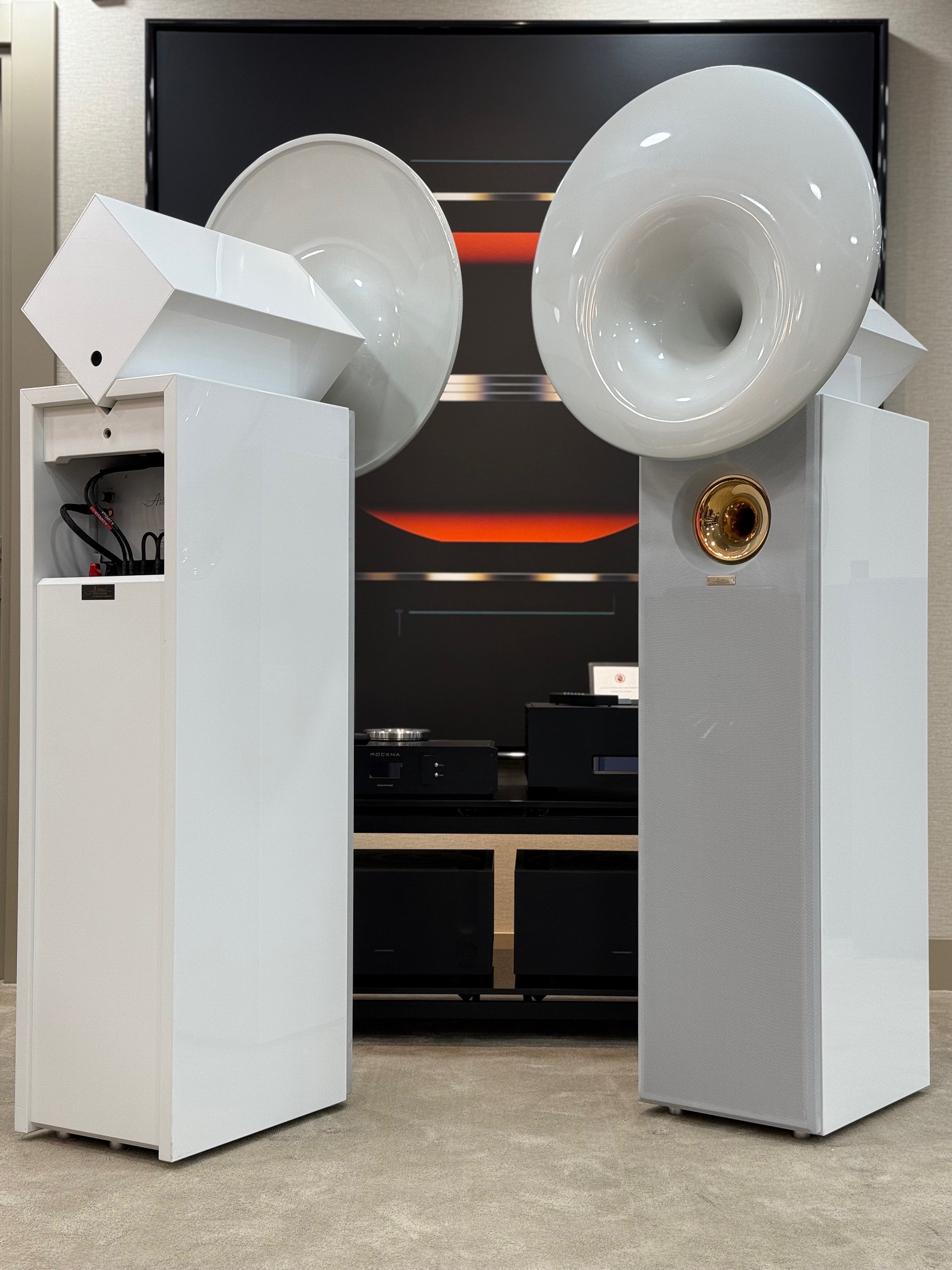

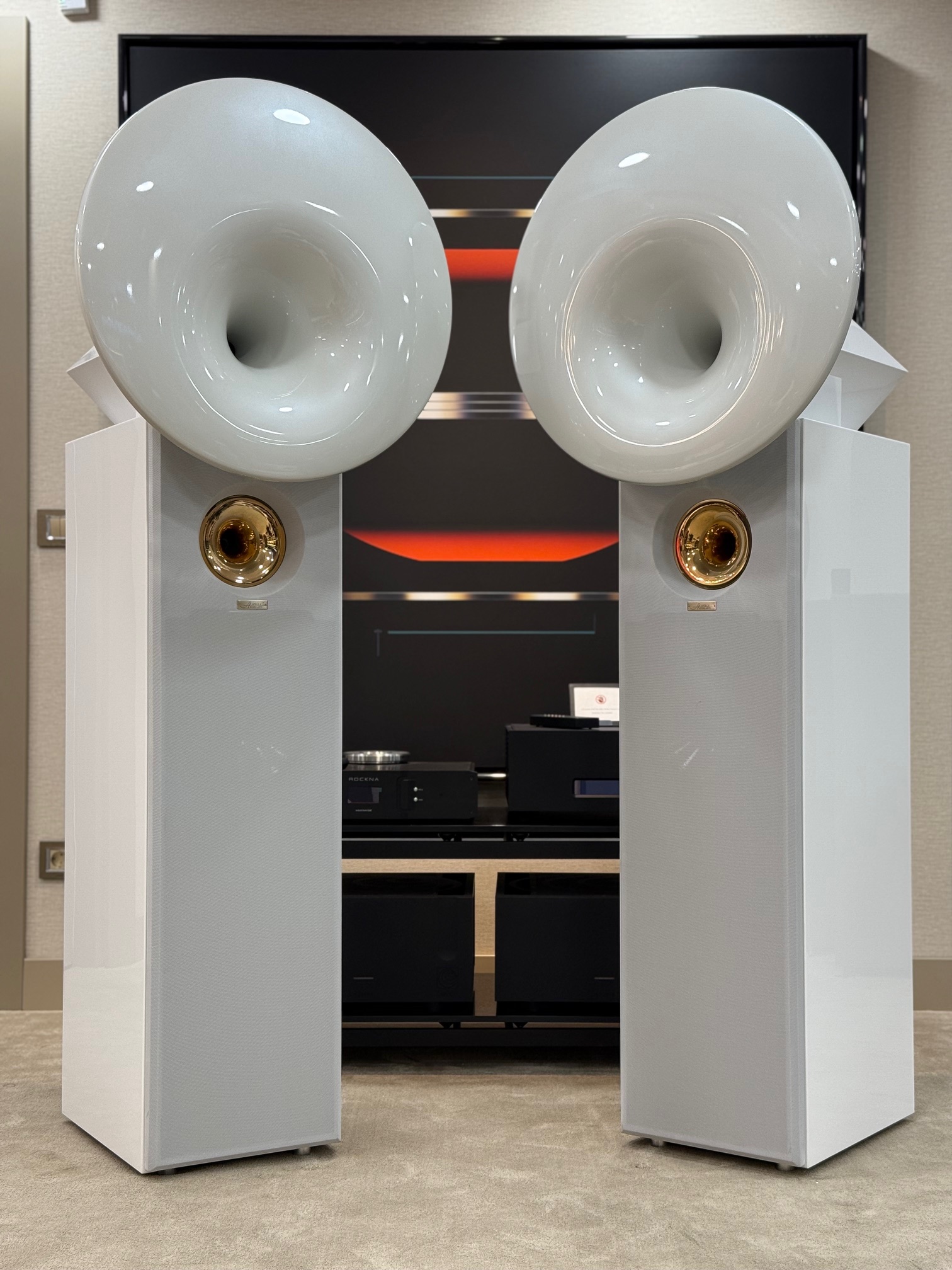

MIDDLE FREQUENCY: 1x 1″ driver  hyperspherical wideband horn 620mm

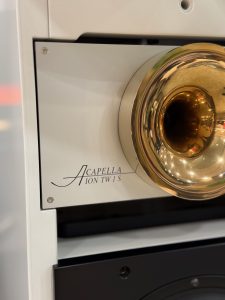

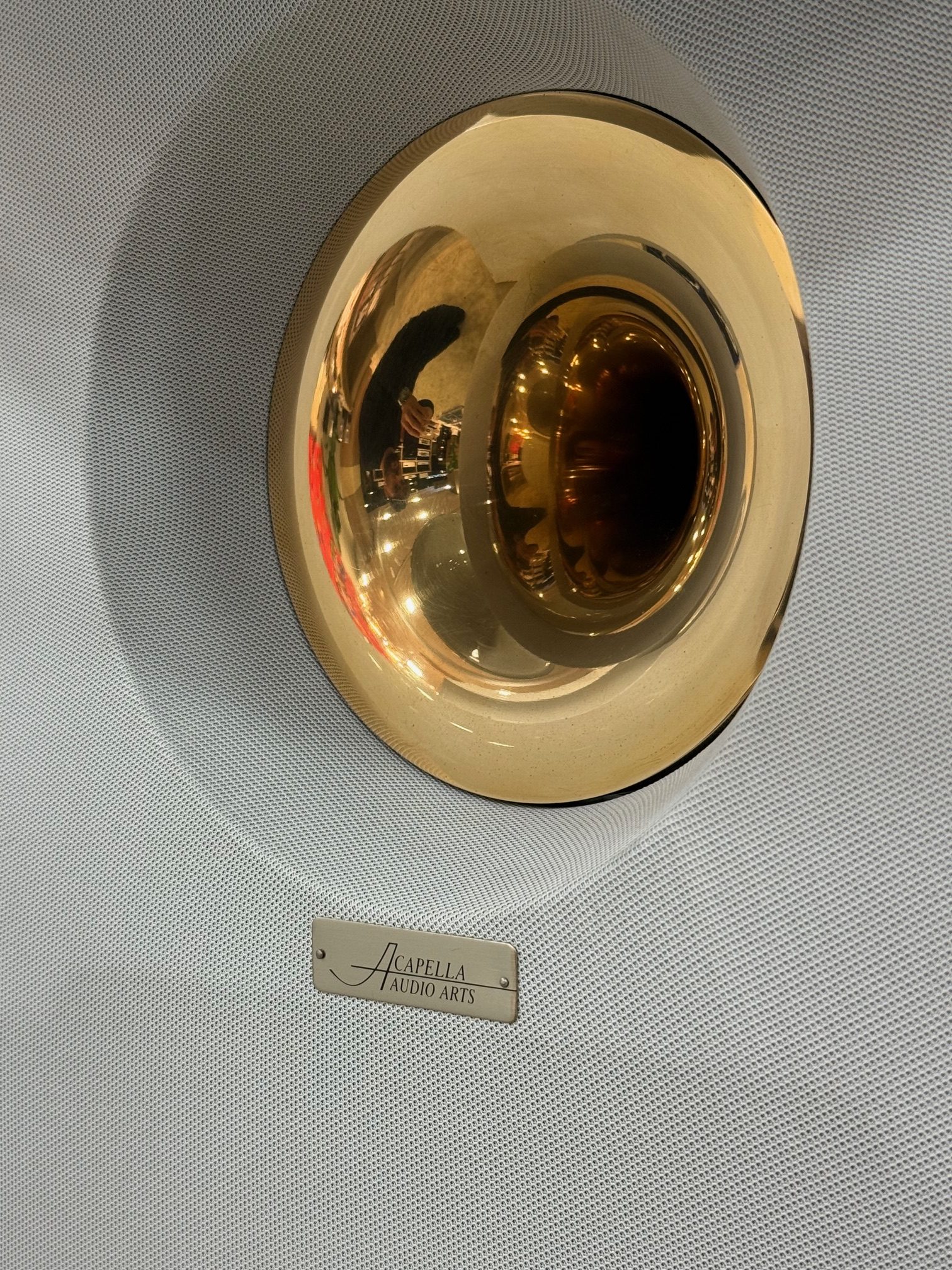

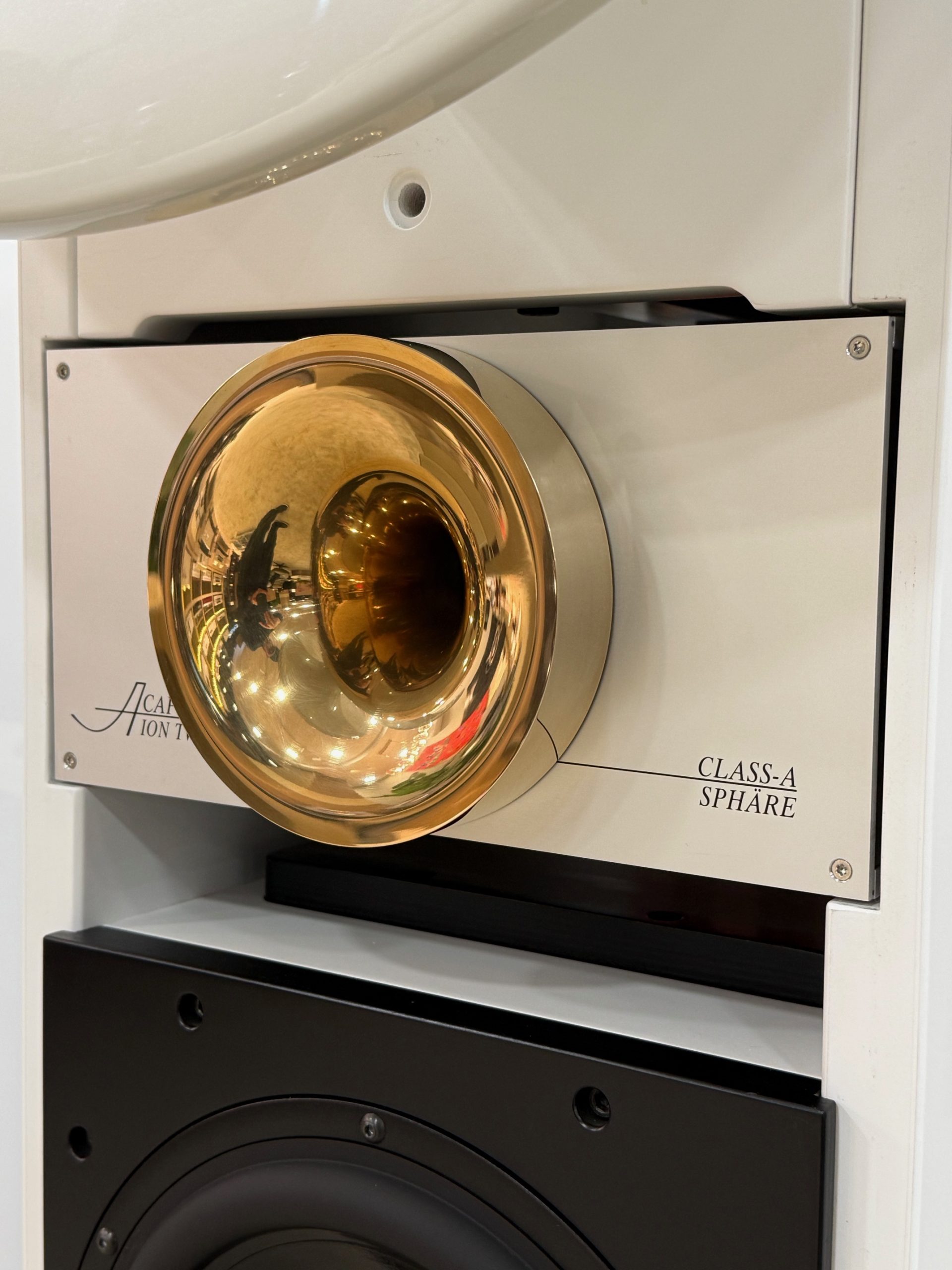

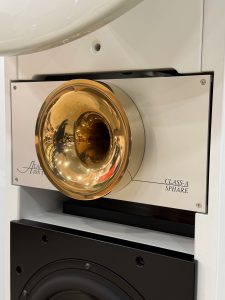

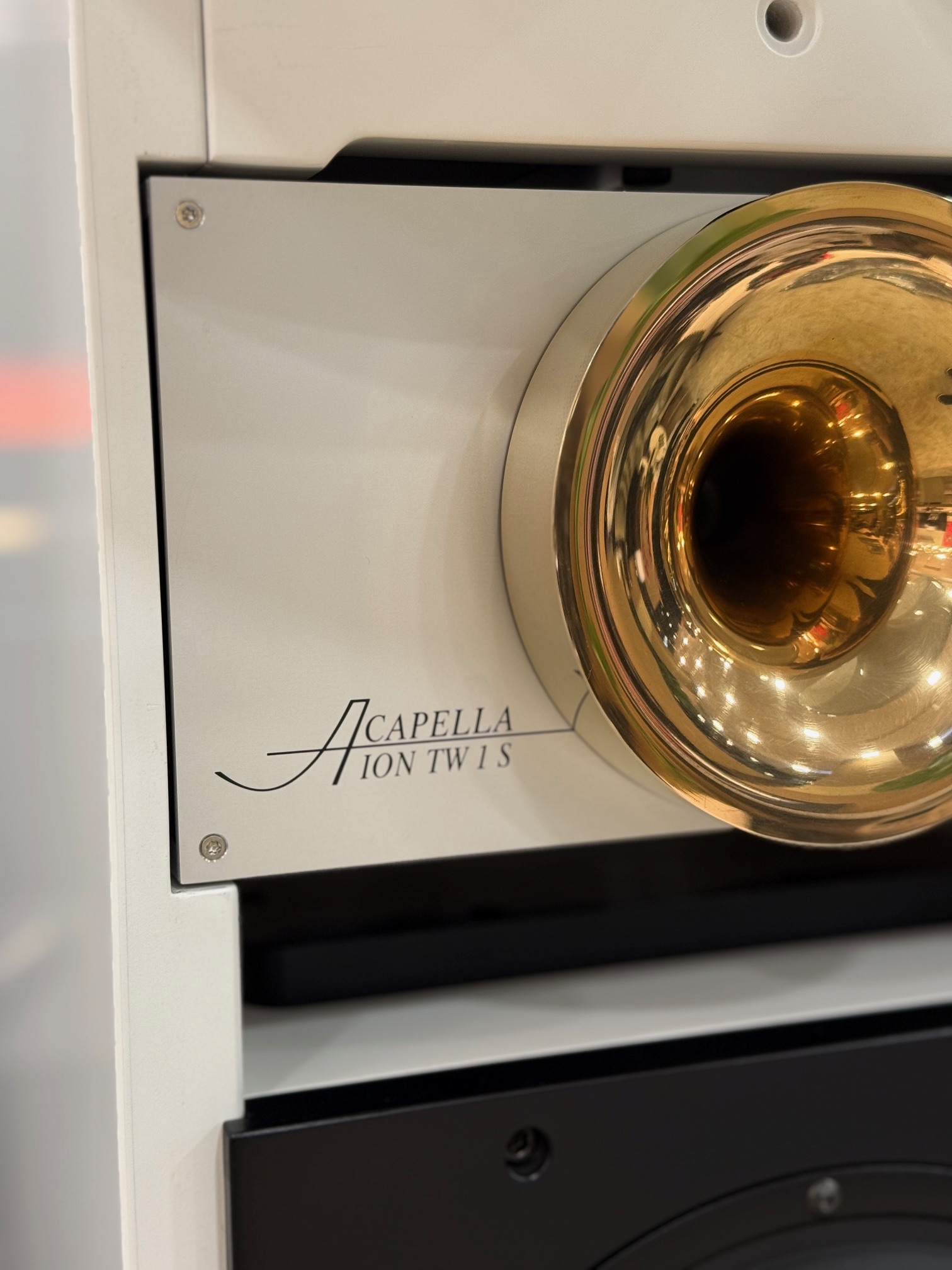

HIGH FREQUENCY: plasma tweeter

EFFICIENCY: 91 dB/1W/1m

IMPEDANCE: 8 Ohm

DIMENSIONS (HxWxD) WITH HORN: 1460 x 330 x 475 mm

DIMENSIONS (HxWxD) WITH HORN: 1685 x 620 x 605 mm

WEIGHT: 105 kg, High Version 120 kg

CAPACITH: 100 W – 1000 W / 10 ms Impuls
