Specifications

• Type
• EL-dB9-1.1-S
• System
• 3-way
• RMS power
• 250 Watt
• Program power
• 500 Watt
• Frequency range
• 26 Hz – 30 kHz
• Nominal impedance
• 4 Ohm
• Efficiency 2.83V/1m
• 89 dB
• Maximum SPL
• 113 dB

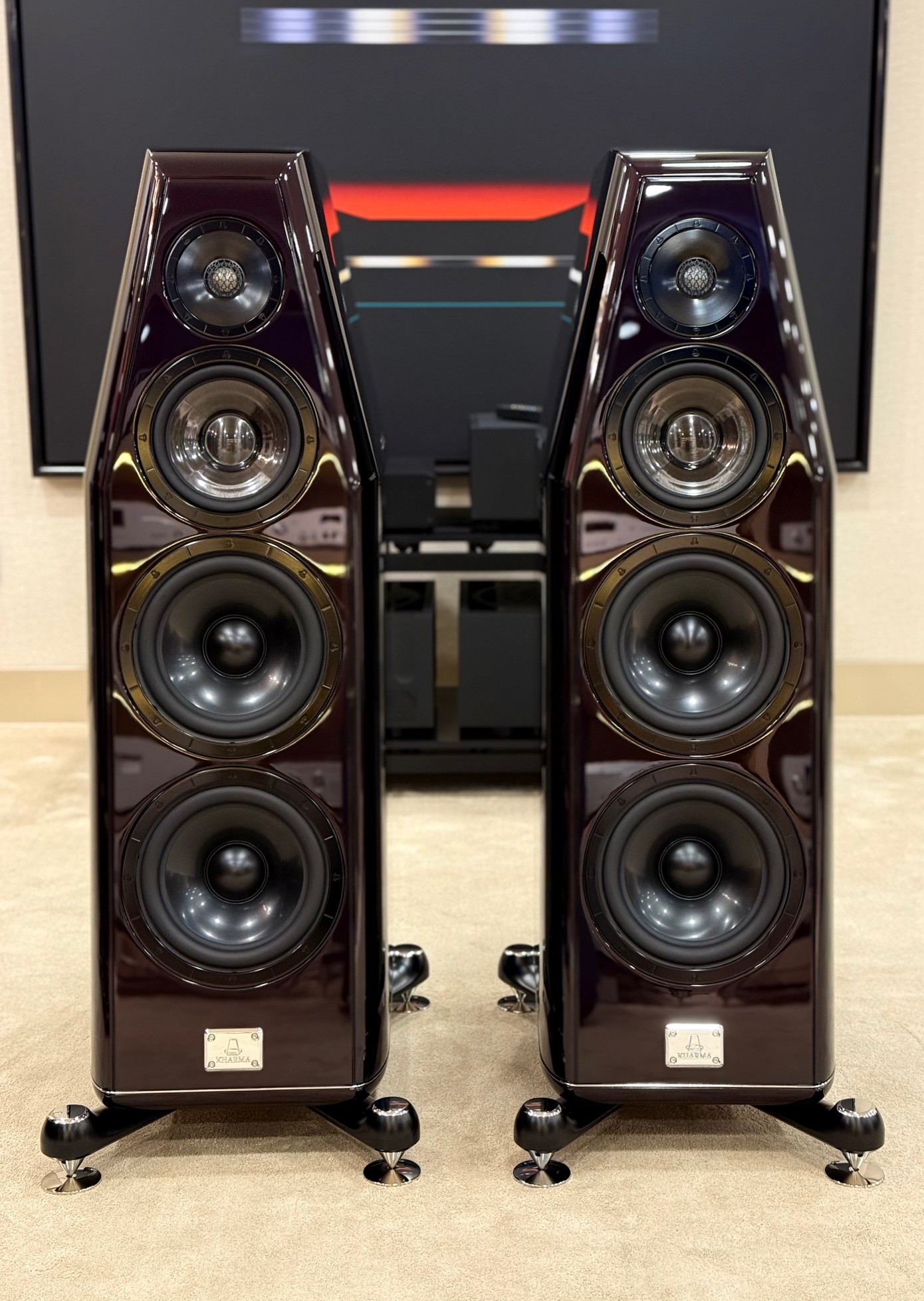

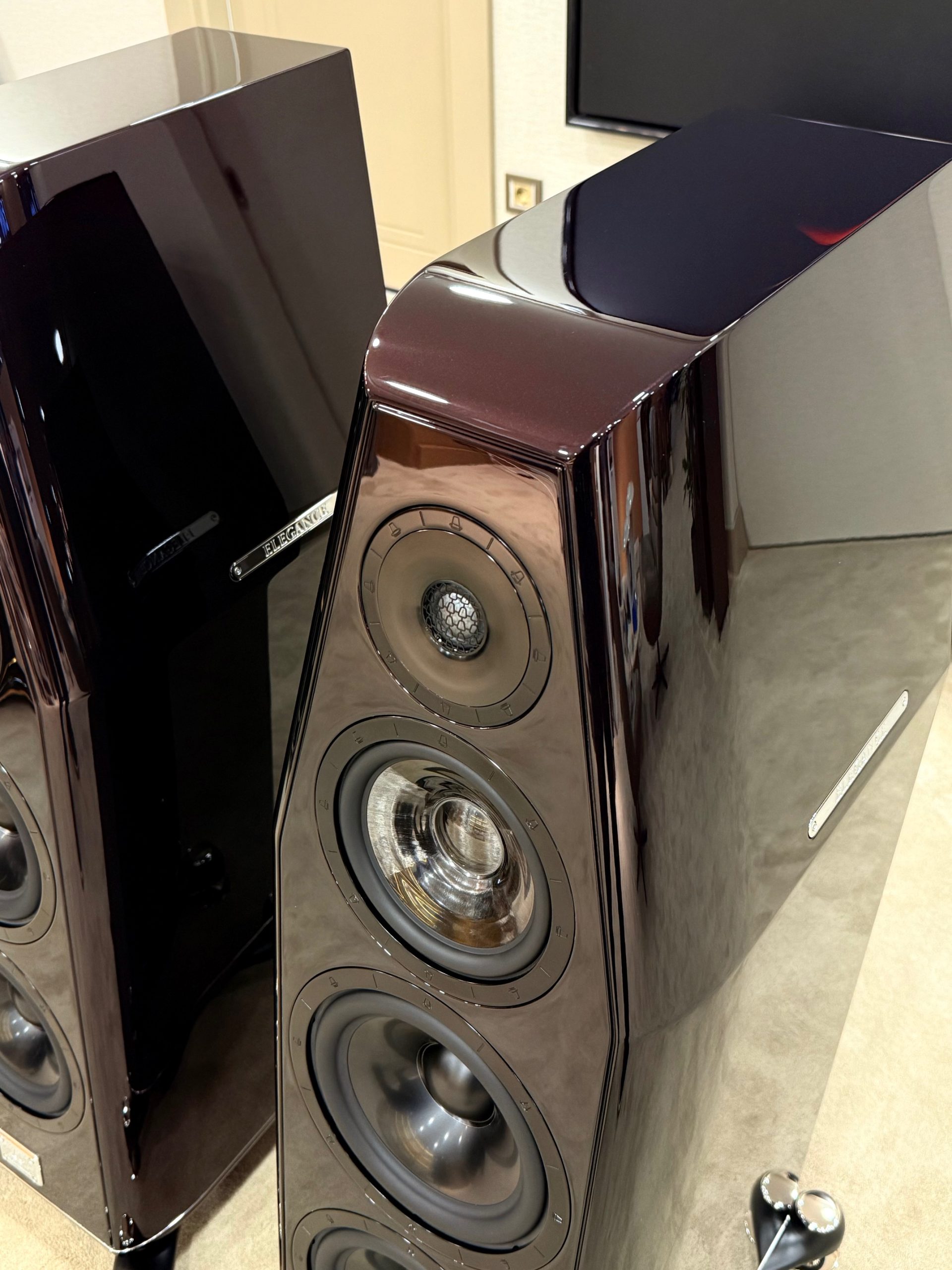

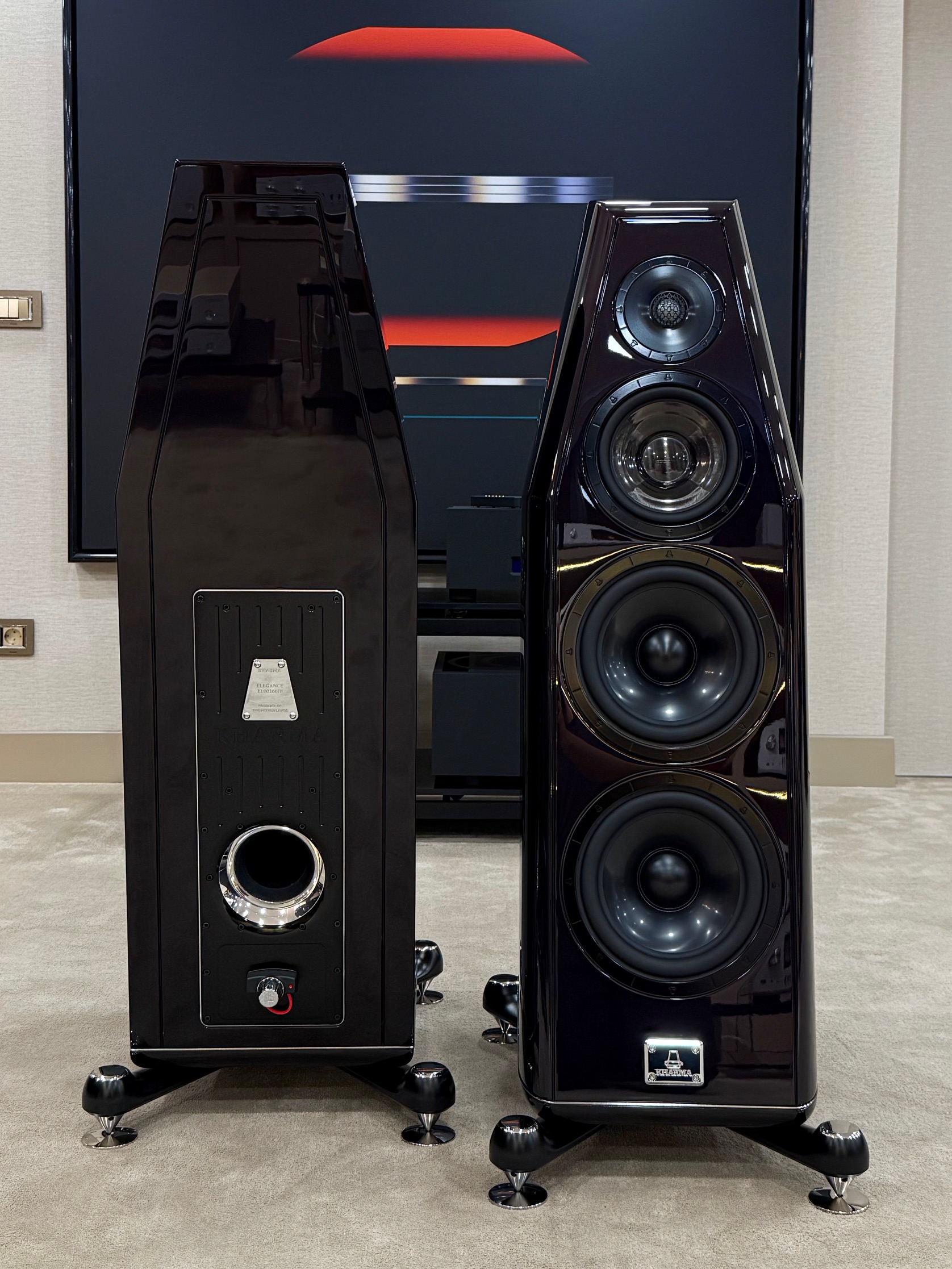

Drivers

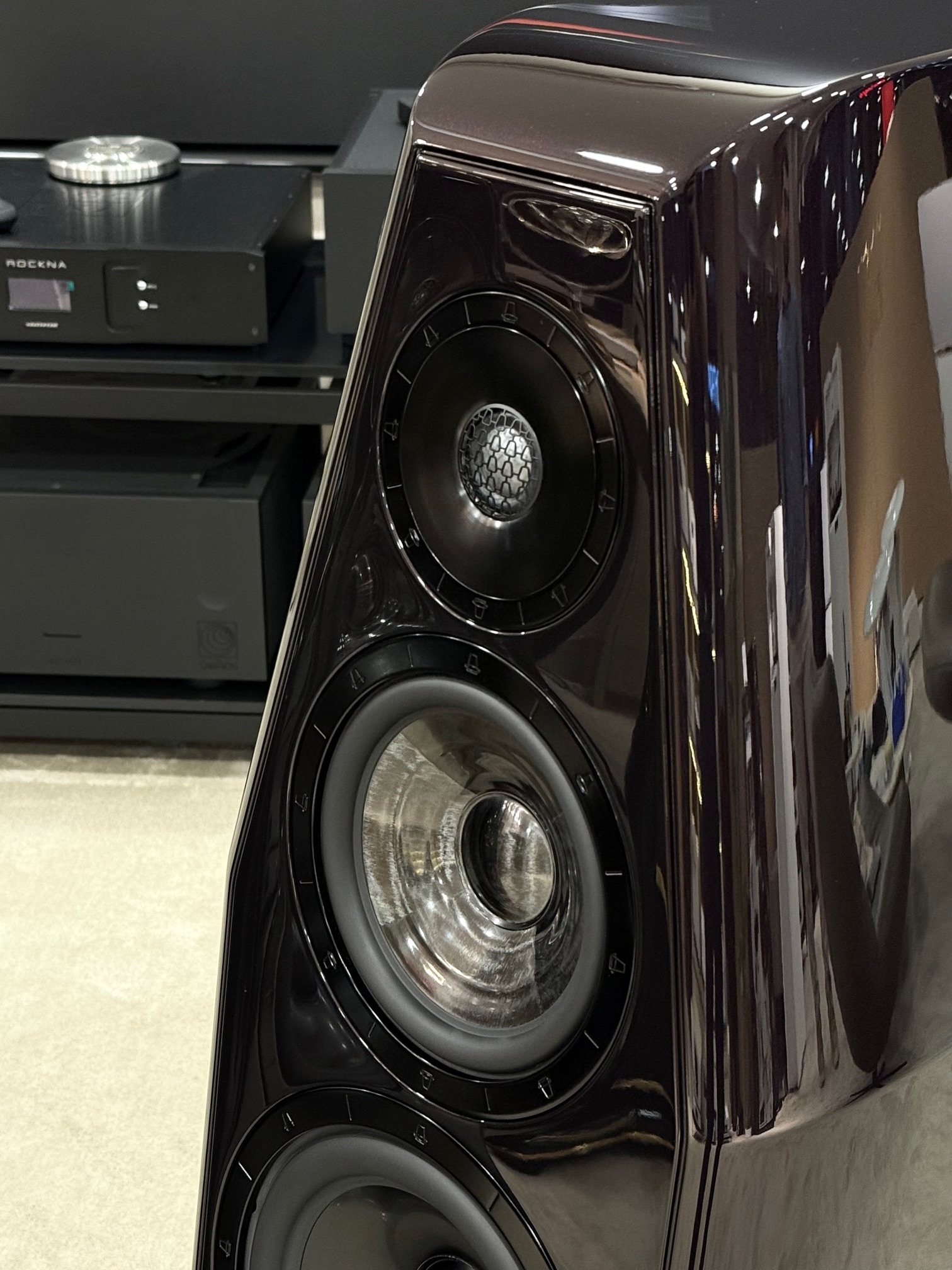

• High frequency
• 1x 1-inch True Beryllium tweeter
• Mid frequency
• 1x 7-inch Kharma Omega 7 driver

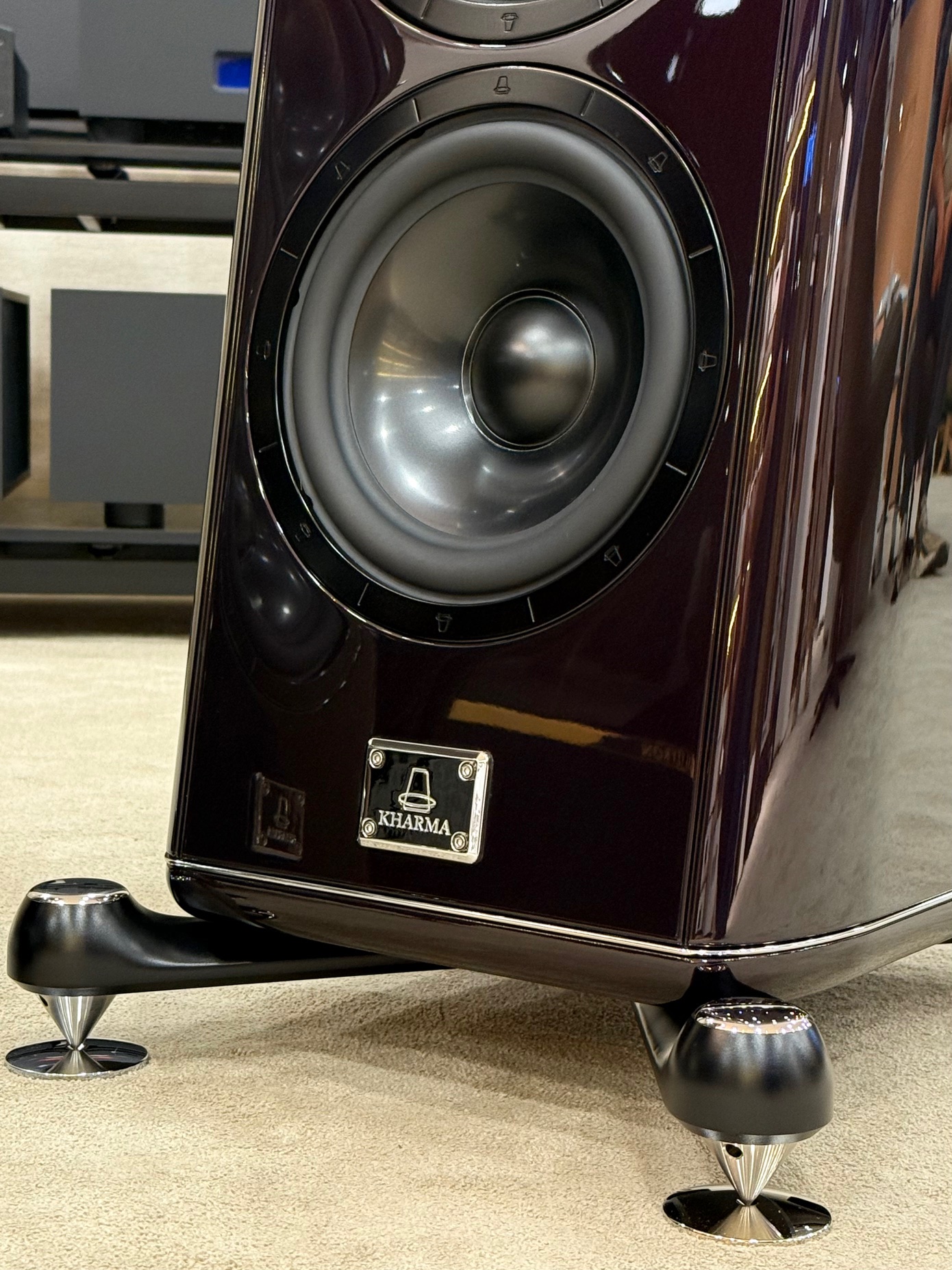

• Low frequency
• 2x 9-inch Aluminium woofer

Dimensions

• Height
• 1041 mm / 40.98 inch
• Width
• 410 mm / 16.14 inch
• Depth
• 606 mm / 23.86 inch
