8.600€
SPECİFCATİONS

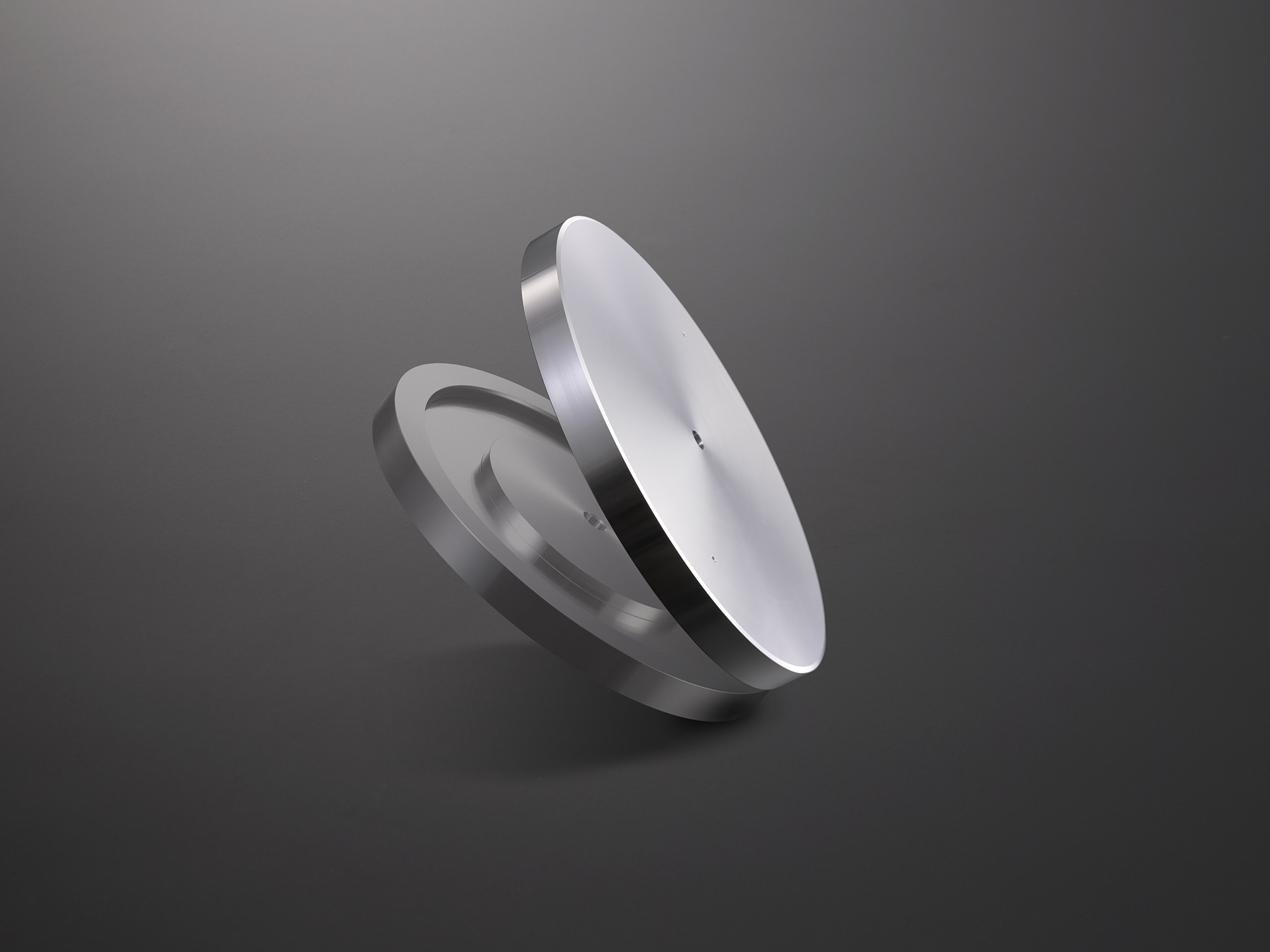

| Turntable Platter | |
| Drive system | Belt drive system |

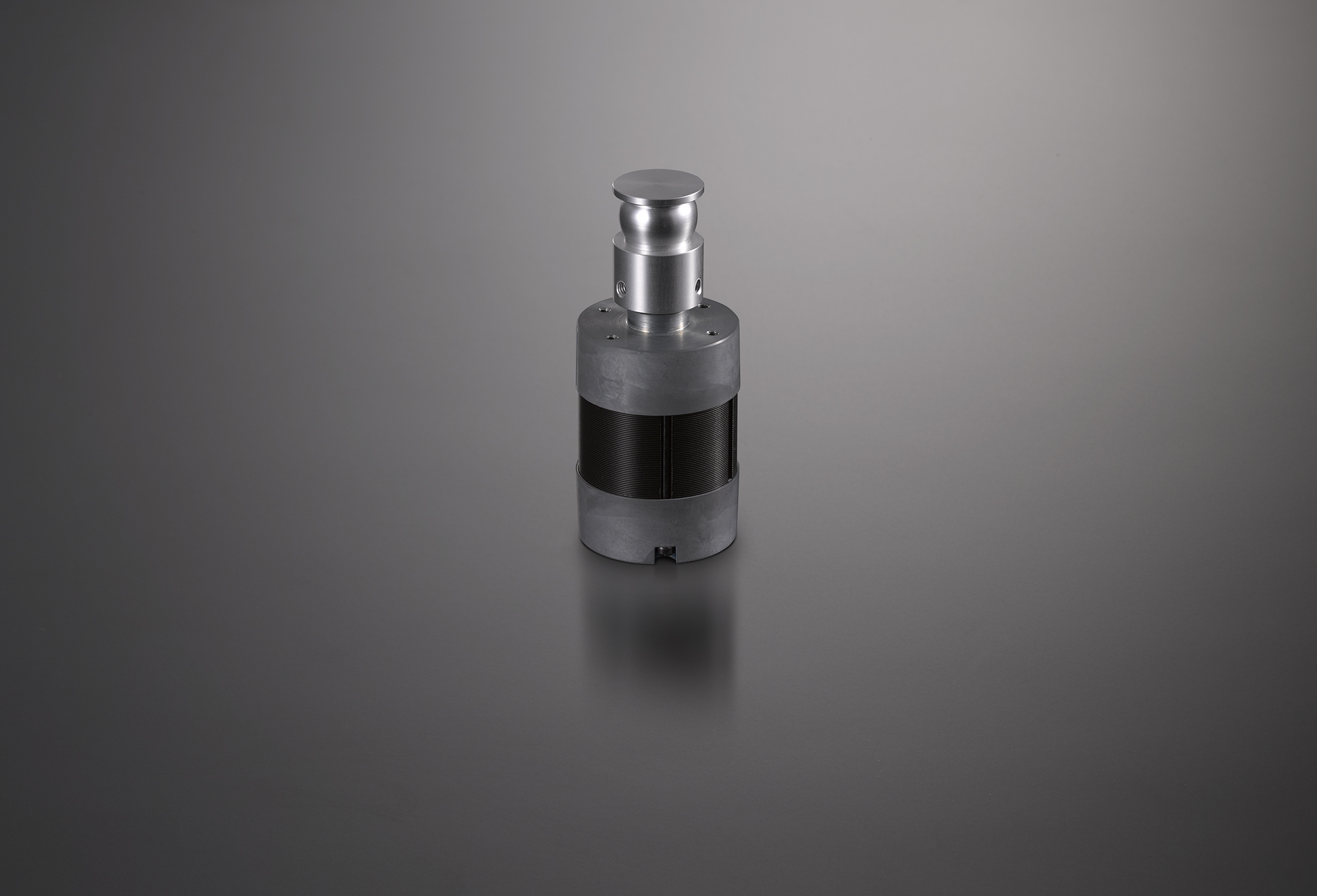

| Motor | Brushless DC motor with PID control |
| Material | Machined aluminum, Surface finish: Diamond cut |

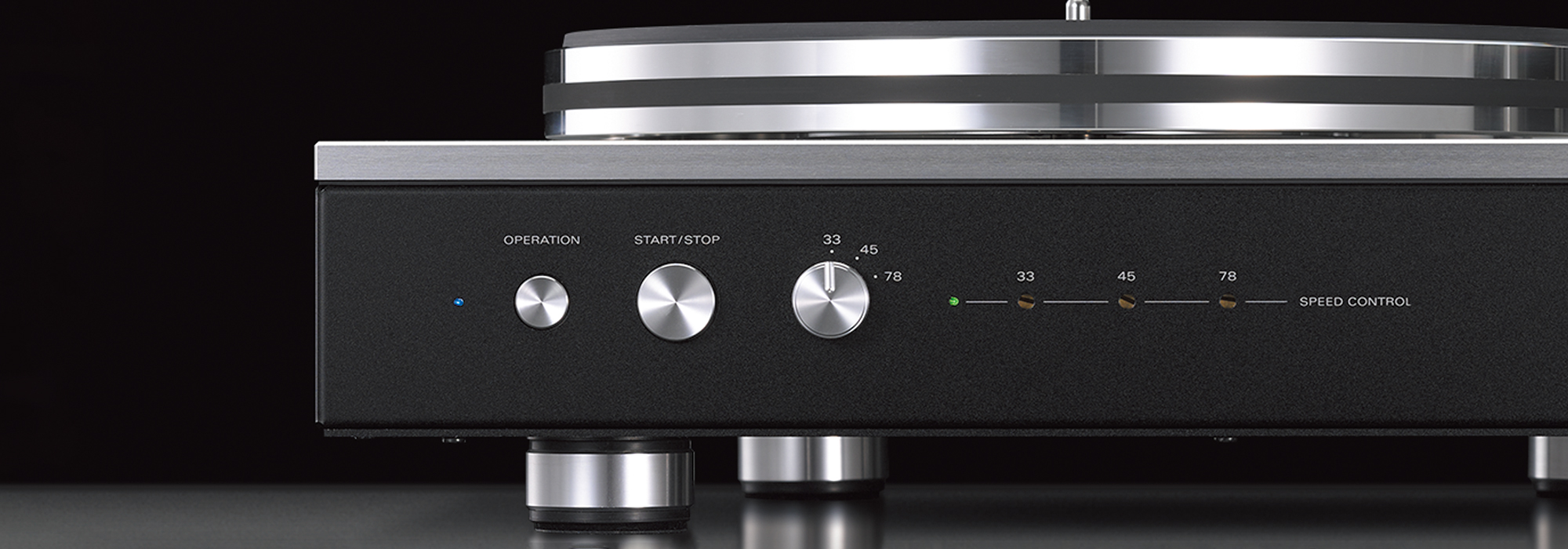

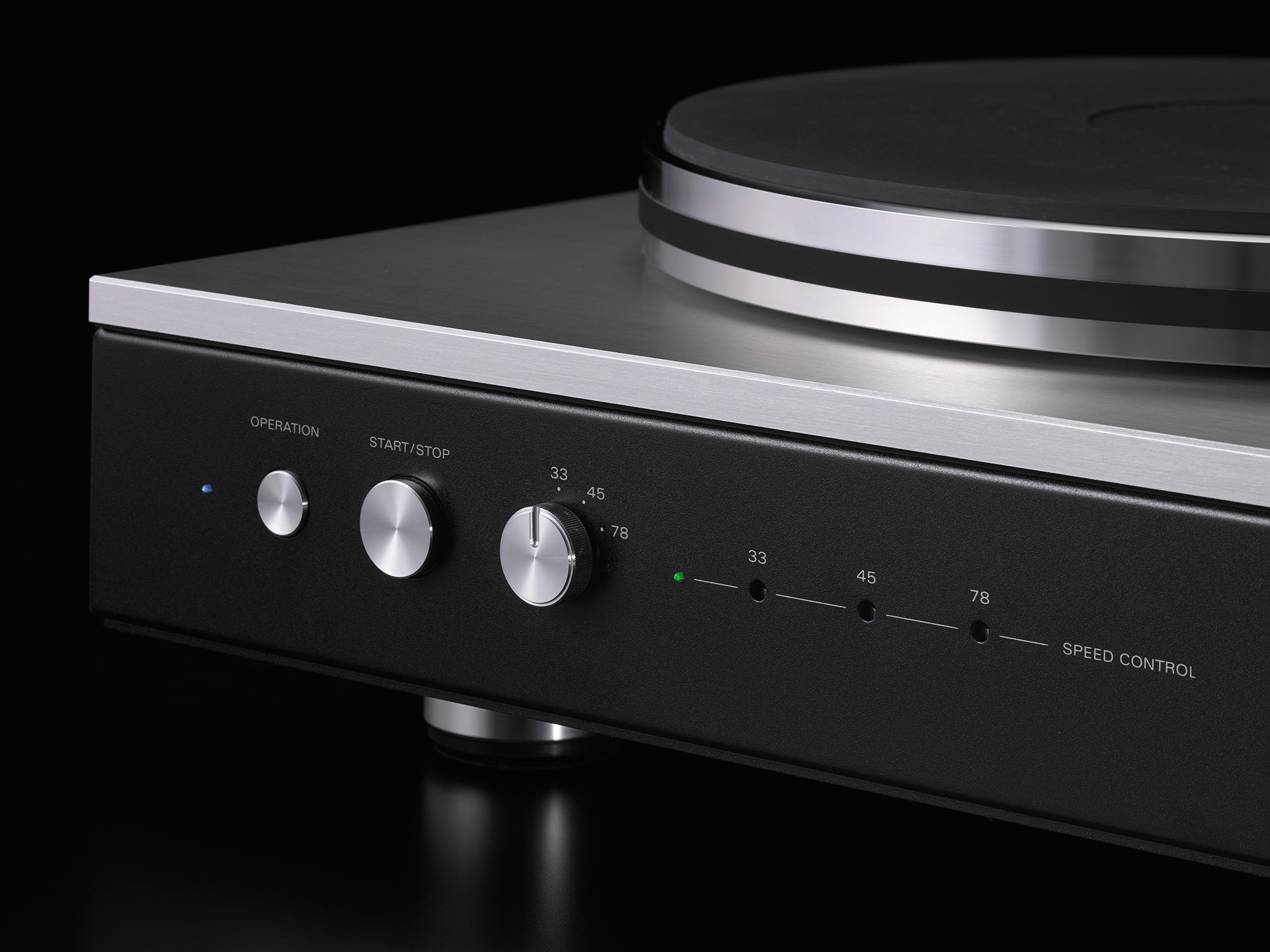

| Revolution | 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable) |
| Revolution adjustment range | ±6% (each rotation speed adjustable independently) |
| Wow and flutter | 0.04% or less (W.R.M.S.) |
| Weight | 4.0kg (Platter) |

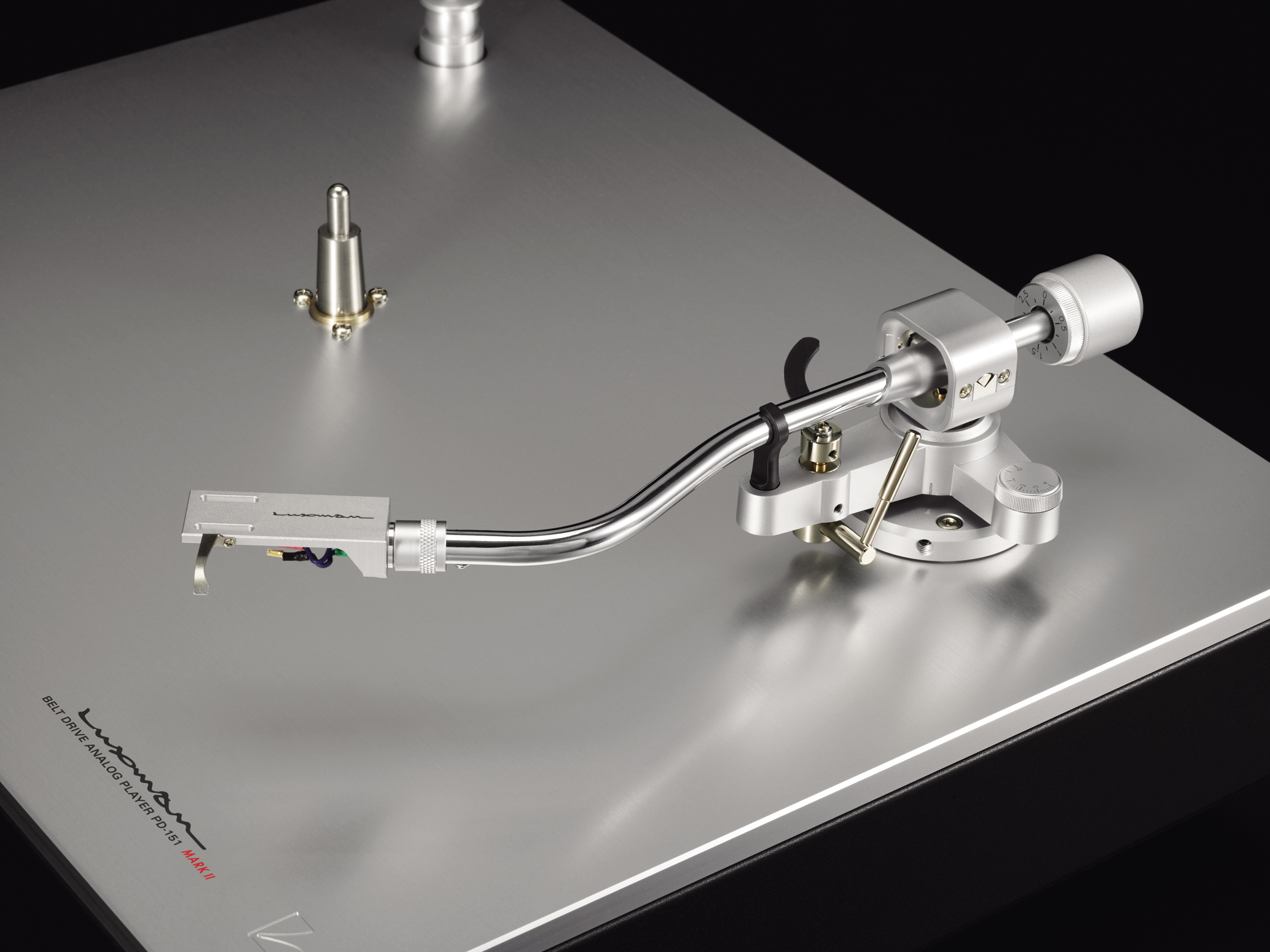

| Tone arm section | |
| Type | Static balanced, S shaped, universal type |

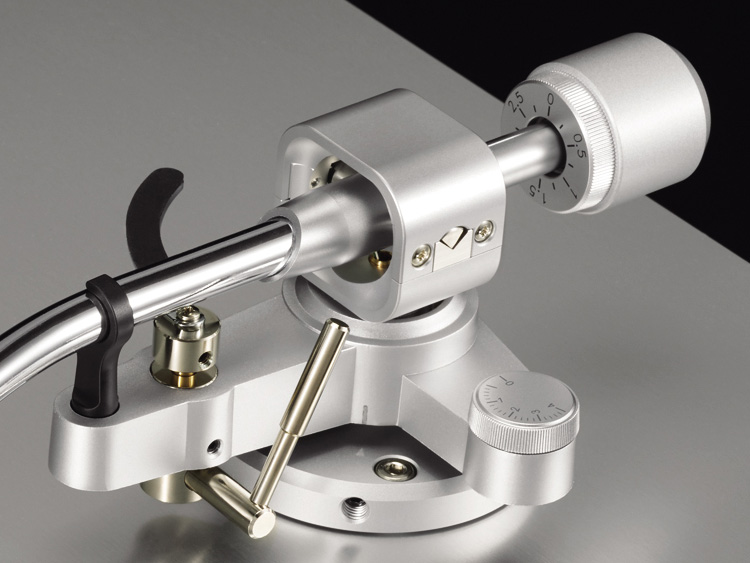

| Bearing | Concealed knife edge |
| Effective length | 222.5mm |
| Overhang | 18mm |
| Tracking error angle | ±3° or less |
| Applicable cartridge weight | 4 to 10g (including headshell 17 to 23g) |
| Adjustable height range | 15mm |
| Anti-skating | 0 to 4g |
| Main unit | |
| Power source | 230V～50Hz / 115V～60Hz |
| Power consumption | 6W |
| Dimensions | 465(W) × 133(to the upper surface of the platter) (H)× 393(D) mm |

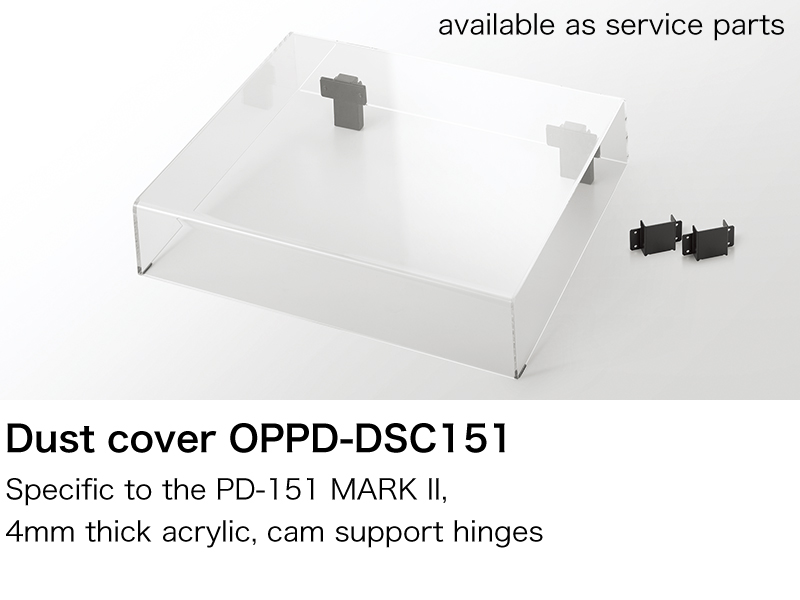

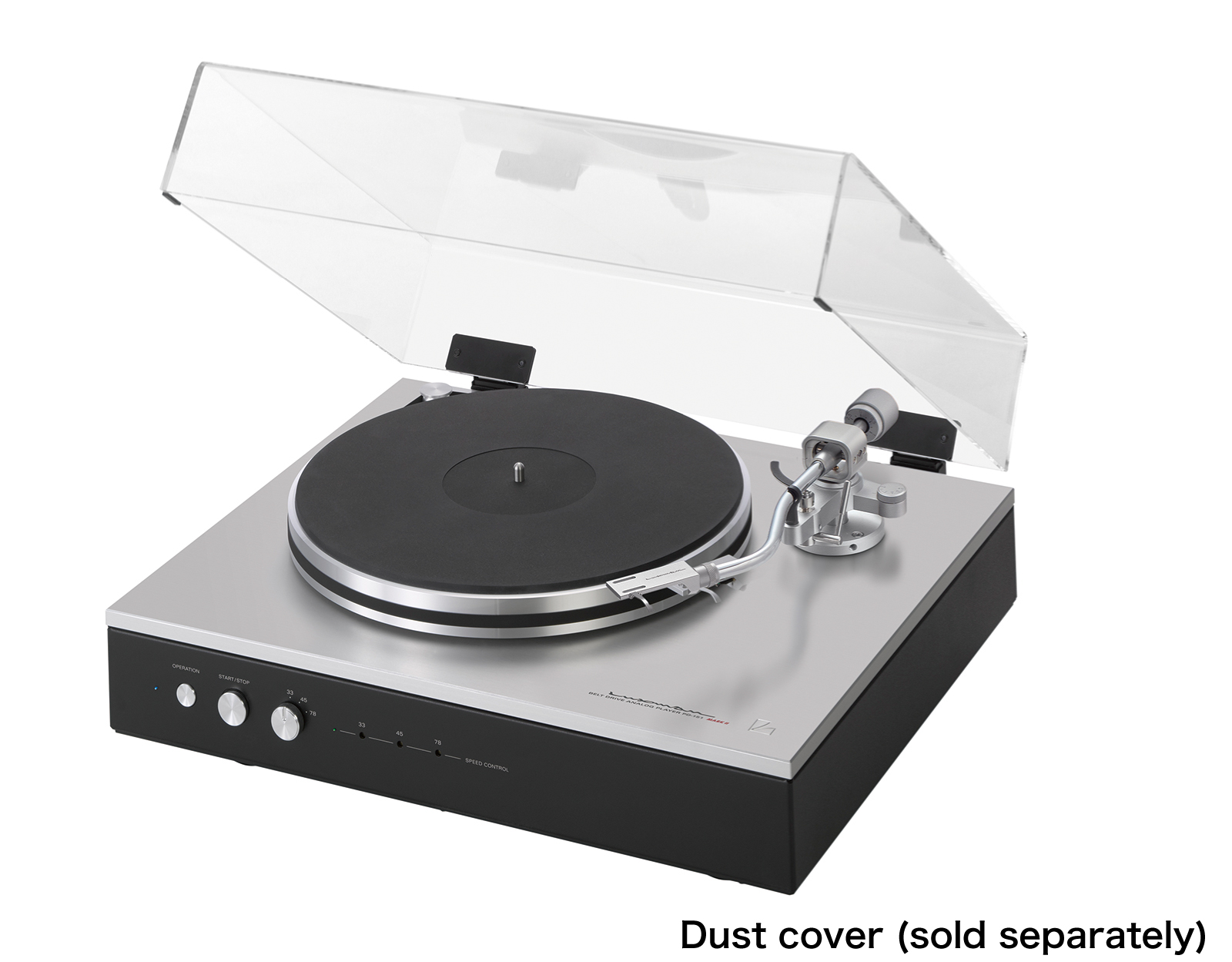

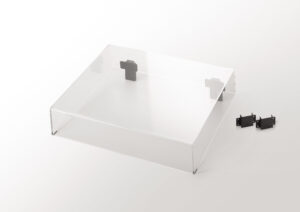

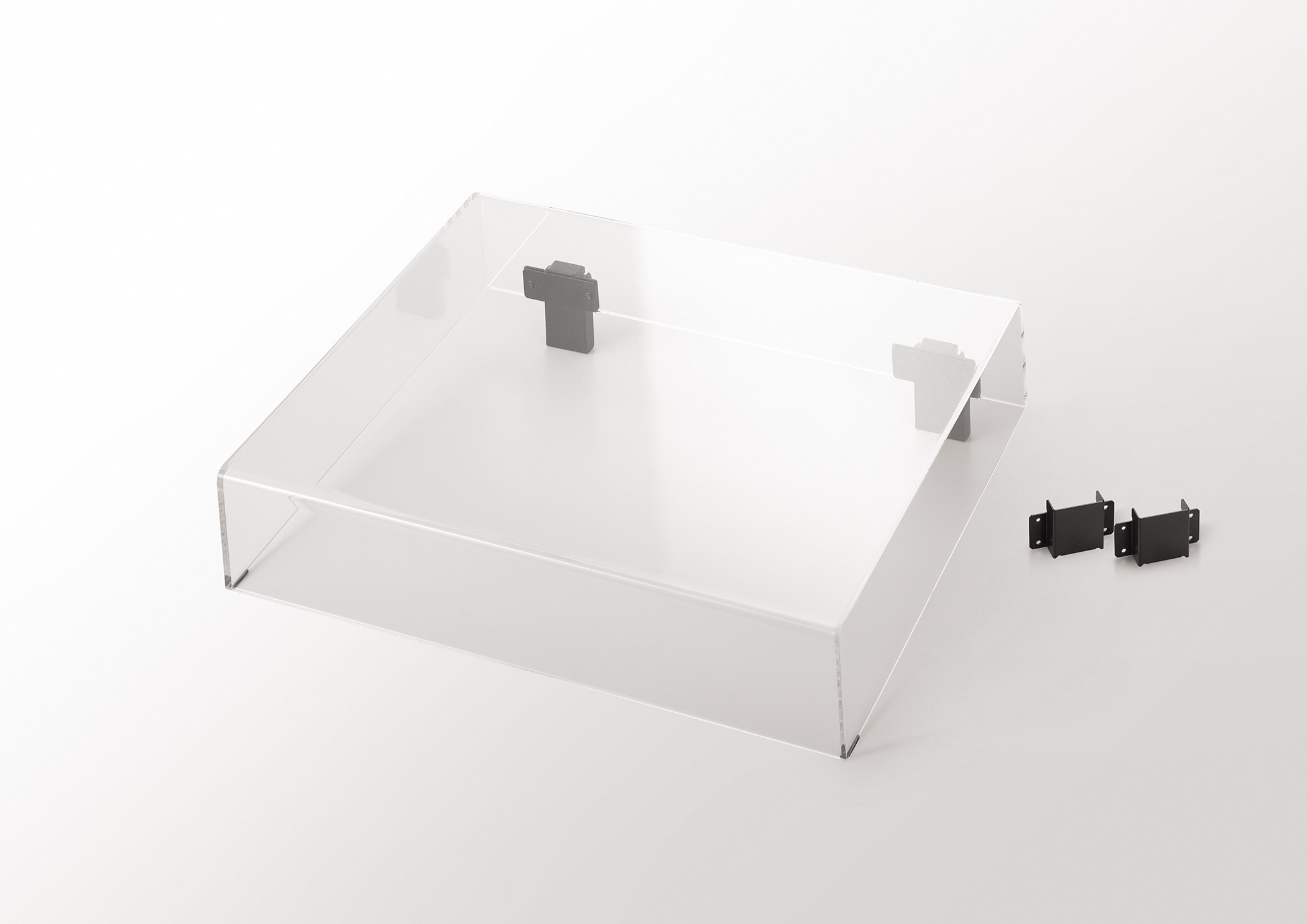

| Net weight | 15.8kg (main unit), 17.2kg (with dust cover) |

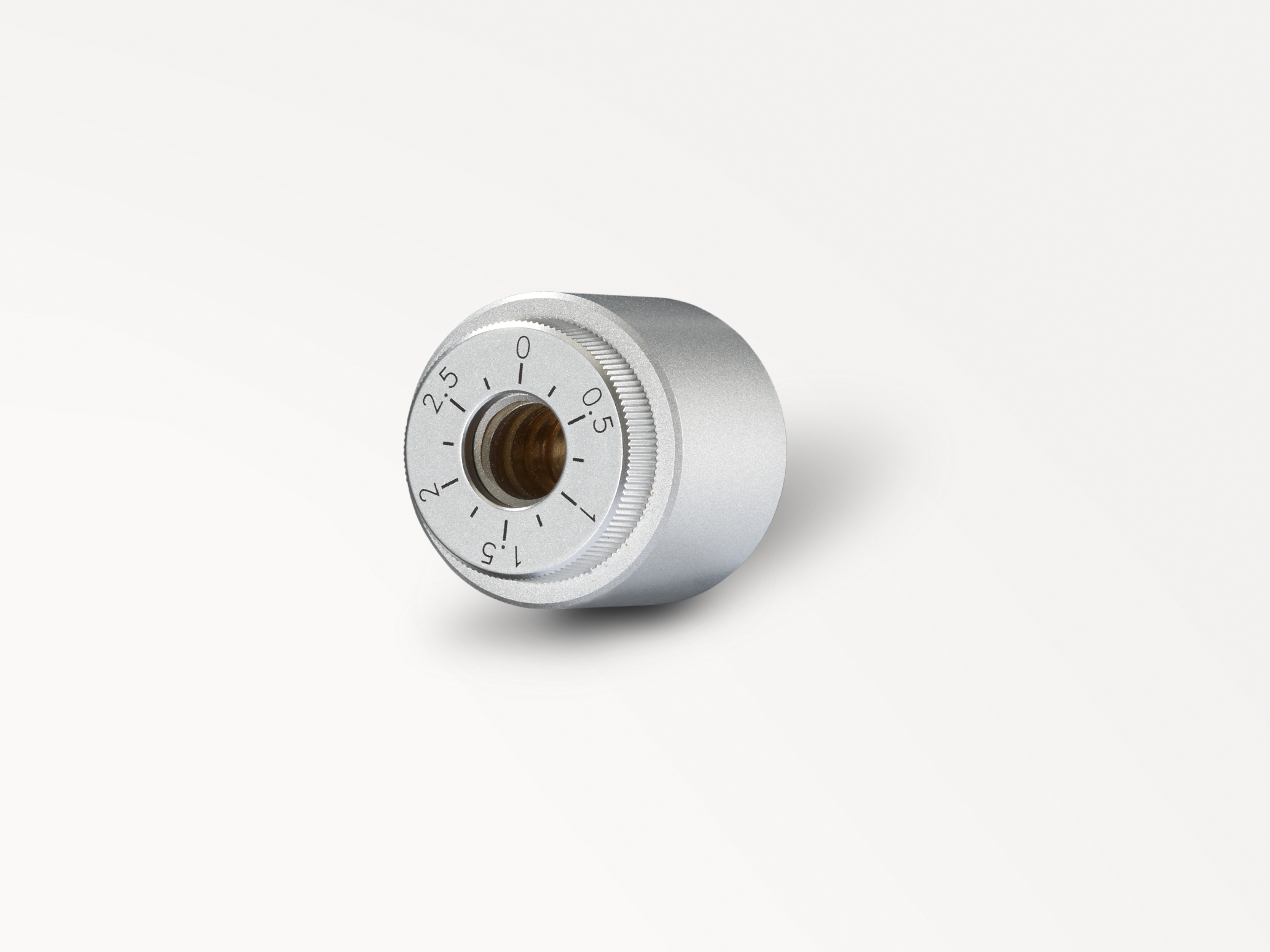

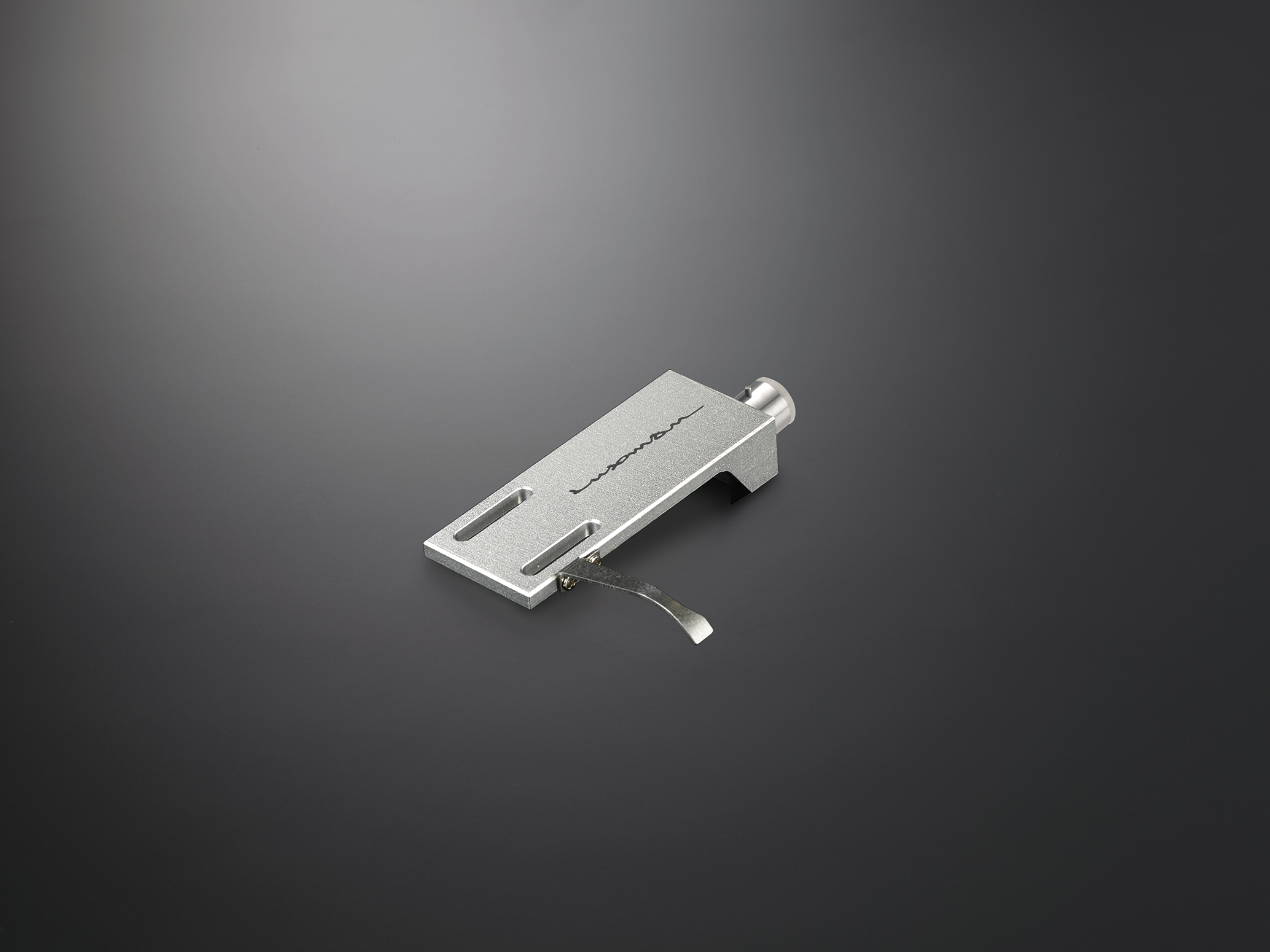

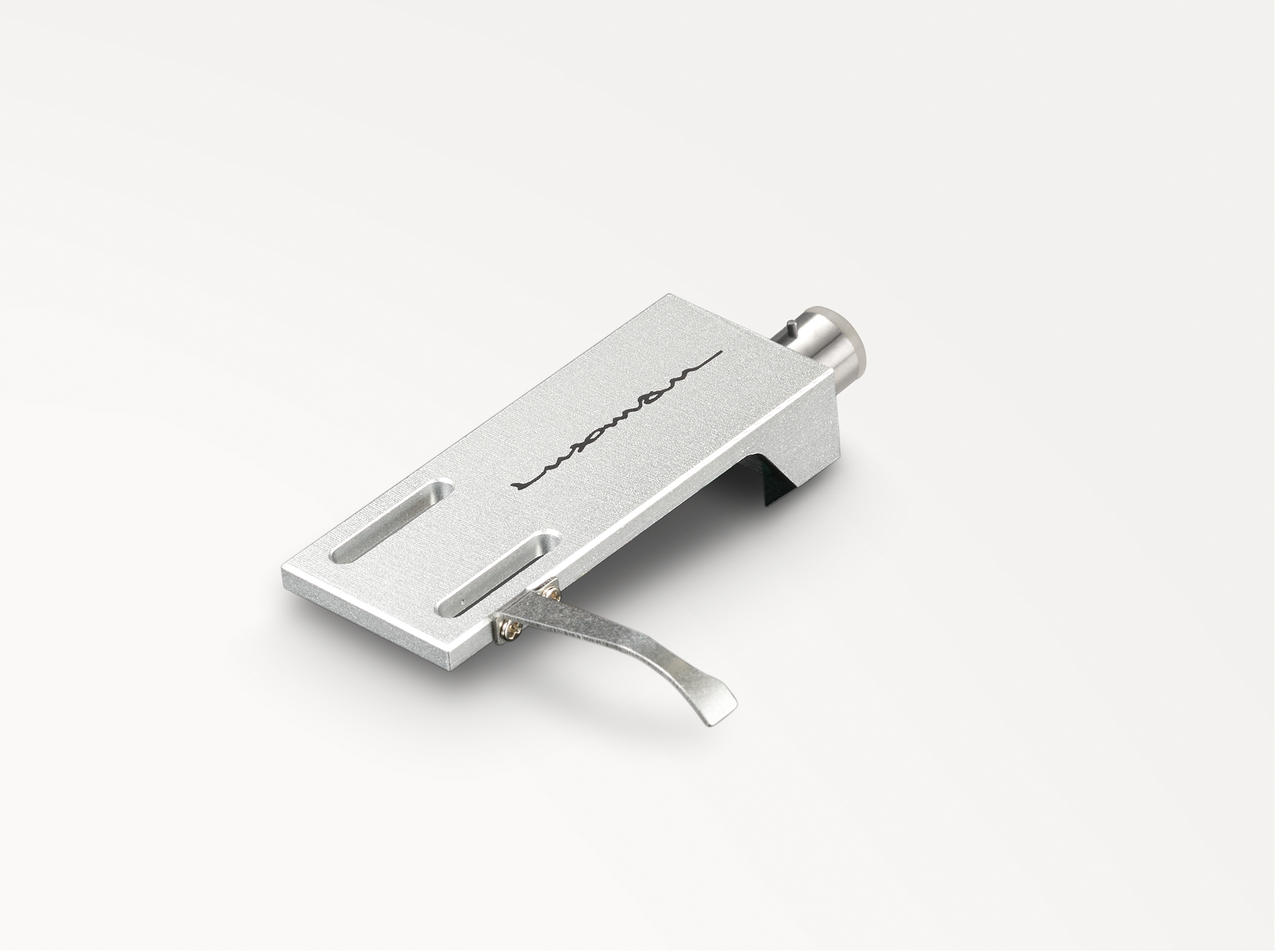

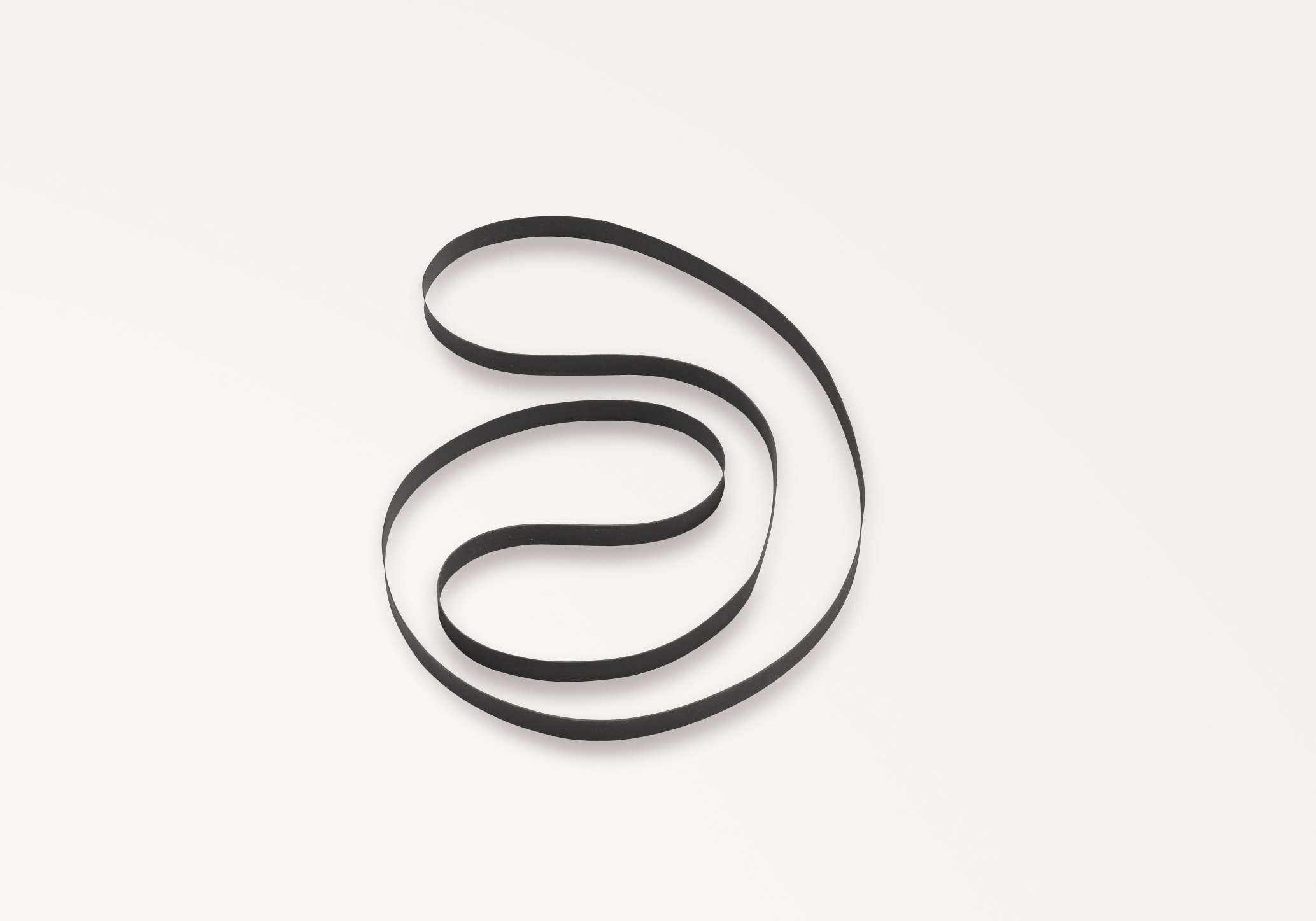

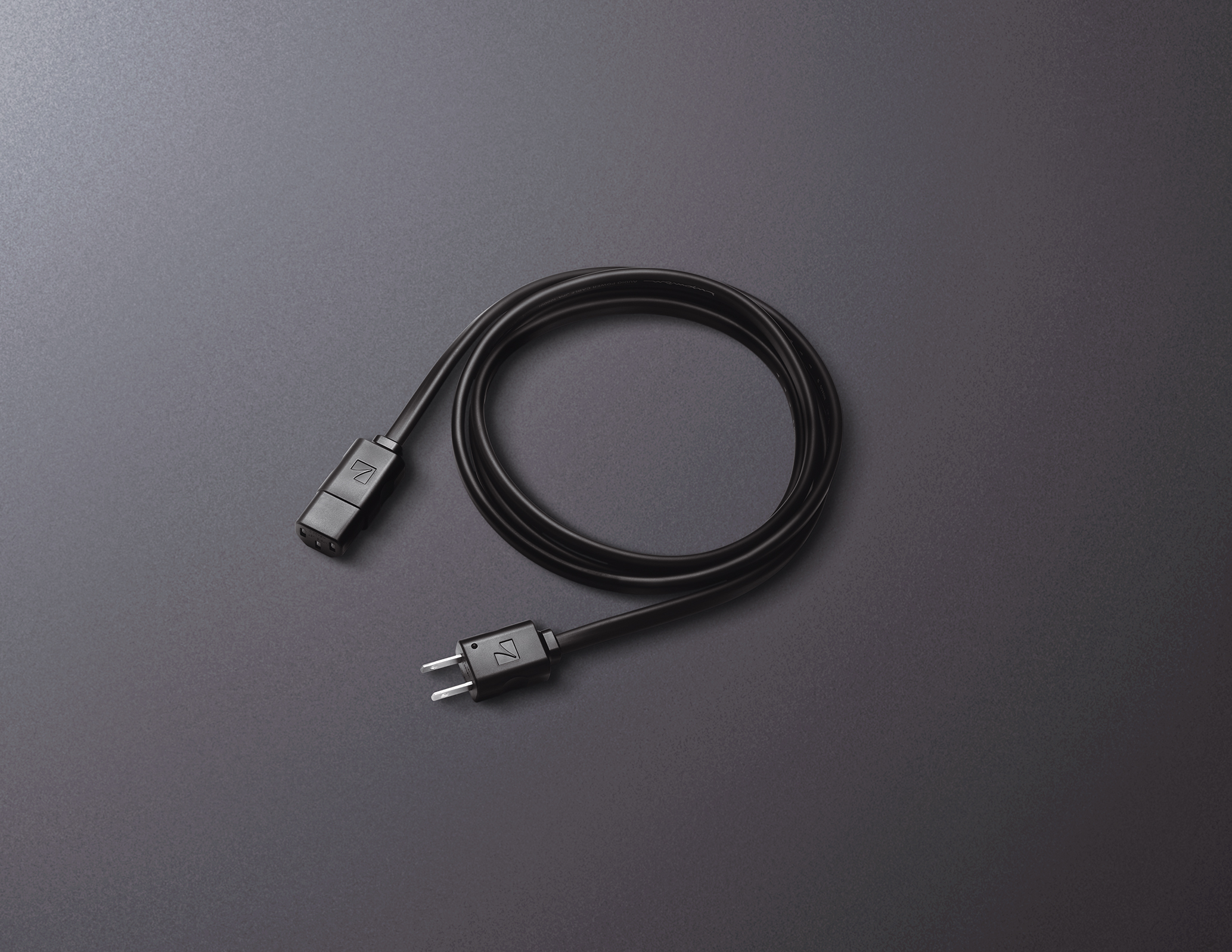

| Accessories | Platter, Headshell, Rubber mat Rubber belt, Platter mount handle (2 pieces) EP adaptor, Counterweight Arm adjustment hex wrench set (2 types) Flathead screwdriver for rotation speed adjustment phono cable (DIN→RCA : already installed in the unit), Power cable
|
