General

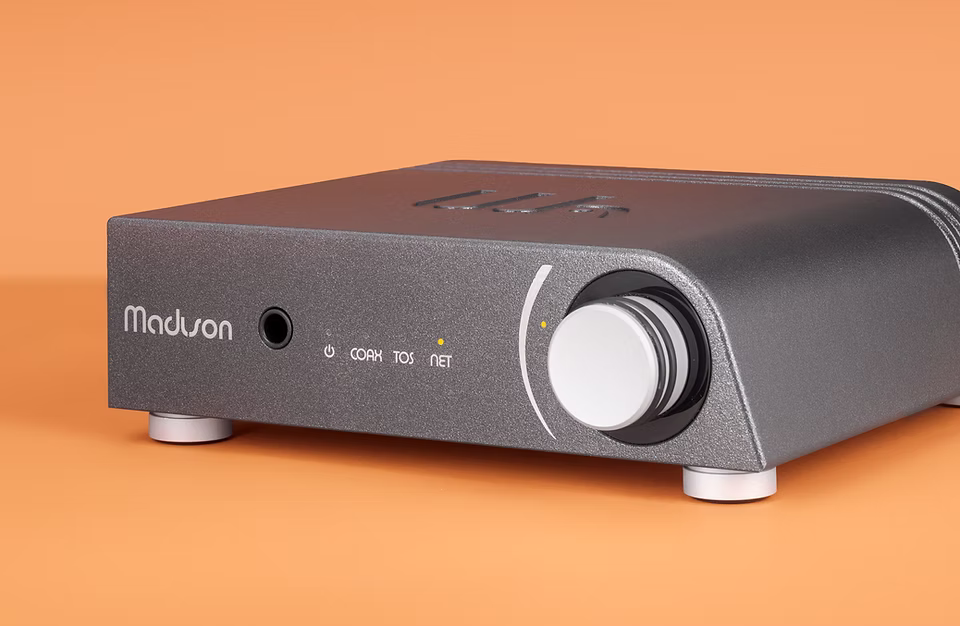

• Type: Network player and Digital-to-Analog converter

• Color Options: Light gray or dark grey

• Dimensions (W x D x H): 175 x 185 x 52 mm

• Weight: 1.1 kg

• Power Supply: External 5 V DC, 18W, universal input

• Power Consumption: < 0.5 W standby, 3.5W nominal

User interface

• Input, volume, standby / ON: Rotary encoder with push

• Remote control: Wattson Music app on iOS / Wattson Remote app on Android

• Firmware update: Via Ethernet connection

​

Digital inputs

• Type: Ethernet RJ45, RCA coaxial S/PDIF, TOSLINK optical S/PDIF

• Sampling rate Ethernet: PCM up to 384 kHz, DSD up to 11.2896 MHz (256x)

• S/PDIF : PCM up to 192kHz, DSD 2.8224MHz (64x) via DoP

​​

Bit Depth

• Ethernet: PCM up to 32-bit, DSD 1 bit

• S/PDIF: PCM up to 24-bit

​

Streaming File Formats

• PCM : WAV, FLAC, AIFF, ALAC, MP3, AAC, Ogg Vorbis, WMA

• DSD: uncompressed DSF and DFF

​

Streaming Services

• UPnP/DLNA, AirPlay, TIDAL connect, Qobuz connect, Roon Ready, plays with Audirvāna

​

Processing and D/A conversion

• Upsampling filter: Proprietary, very short, time-optimized, based on cubic splines

• Digital volume control: Proprietary, -80.0 to 0 dB, 0.5 dB step

• Conversion Type: Multi-bit Sigma-Delta, chip-based, dual mono

• Clocking: Internal ultra-low jitter crystal oscillator

​

Analog Outputs

• Type: Balanced XLR, single-ended RCA, 6.35 mm Jack

• Output level (full scale): 4.0 V RMS balanced, 2.0 V RMS single-ended

• Total Harmonic Distortion: < 0.001 %

• Signal-to-noise ratio (A-weighted): > 120 dB

​

Headphone Output Power:

• 32 Ω : 2 x 150 mW

• 150 Ω : 2 x 50 mW

• 600 Ω : 2 x 10 mW
