15.500€
| Rated Output Power | 20 W + 20 W (8 Ω), 40 W + 40 W (4 Ω) |
|---|---|
| Input Sensitivity / Input Impedance | PHONO (MM): 2.5 mV / 47 kΩ PHONO (MC): 0.3 mV / 100 Ω LINE: 180 mV / 47 kΩ BAL.LINE: 180 mV / 55 kΩ MAIN-IN: 450 mV / 47 kΩ |
| Output Voltage | PRE OUT: 1 V |
| Frequency Response | PHONO: 20 Hz to 20 kHz (±0.5dB) LINE: 20 Hz to 100 kHz (within –3.0 dB) |
| Total Harmonic Distortion | 0.005% or less (8 Ω, 1 kHz) 0.015% or less (8 Ω, 20 Hz to 20 kHz) |
| Signal-to-Noise Ratio (IHF-A) | PHONO (MM): 80 dB or more PHONO (MC): 65 dB or more LINE: 98 dB or more |
| Volume Control | New LECUA1000 |

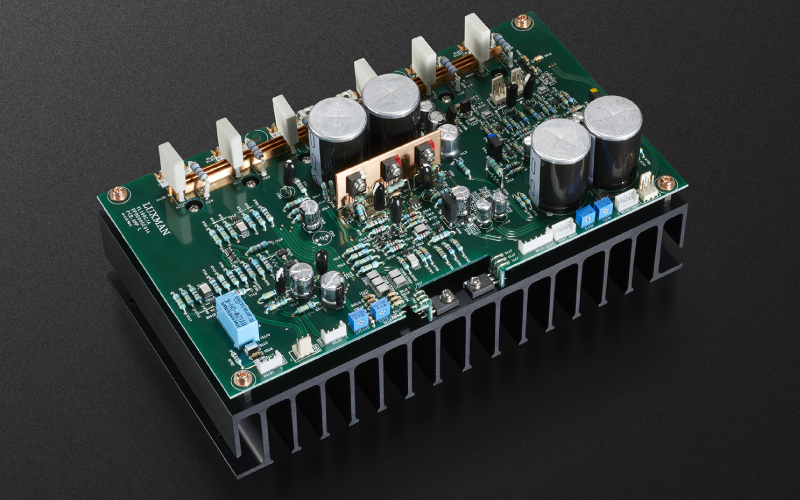

| Amplification Circuit | LIFES 1.1 |
| Output Configuration | Bipolar, 3-parallel push-pull |
| Damping Factor | 300 |

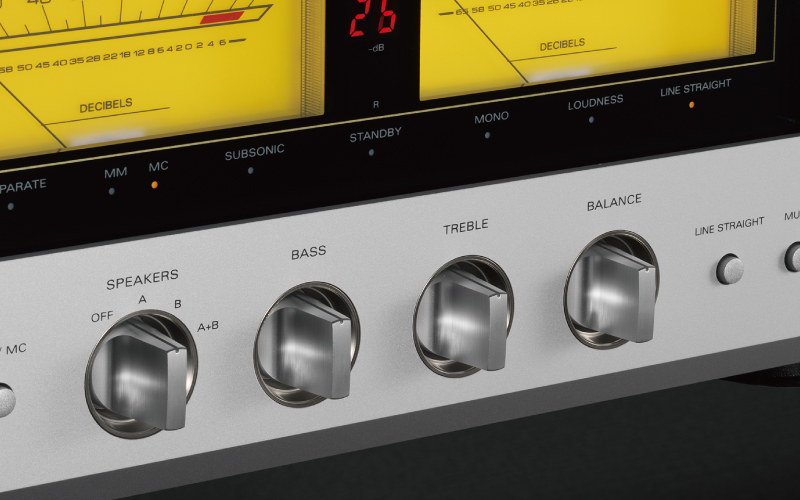

| Maximum Tone Control Adjustment | BASS: ±8 dB at 100 Hz TREBLE: ±8 dB at 10 kHz |
|---|---|
| Power Supply Voltage | 230V~(50Hz)/115V~(60Hz) |
| Power Consumption | 260 W 210 W (under no signal), 0.5W (standby) |
| Dimensions | 440 (W) × 178 (H) × 454 (D) mm front side knob of 20 mm and rear side terminal of 27 mm included in depth |
| Weight | 25.4 kg (main unit) |

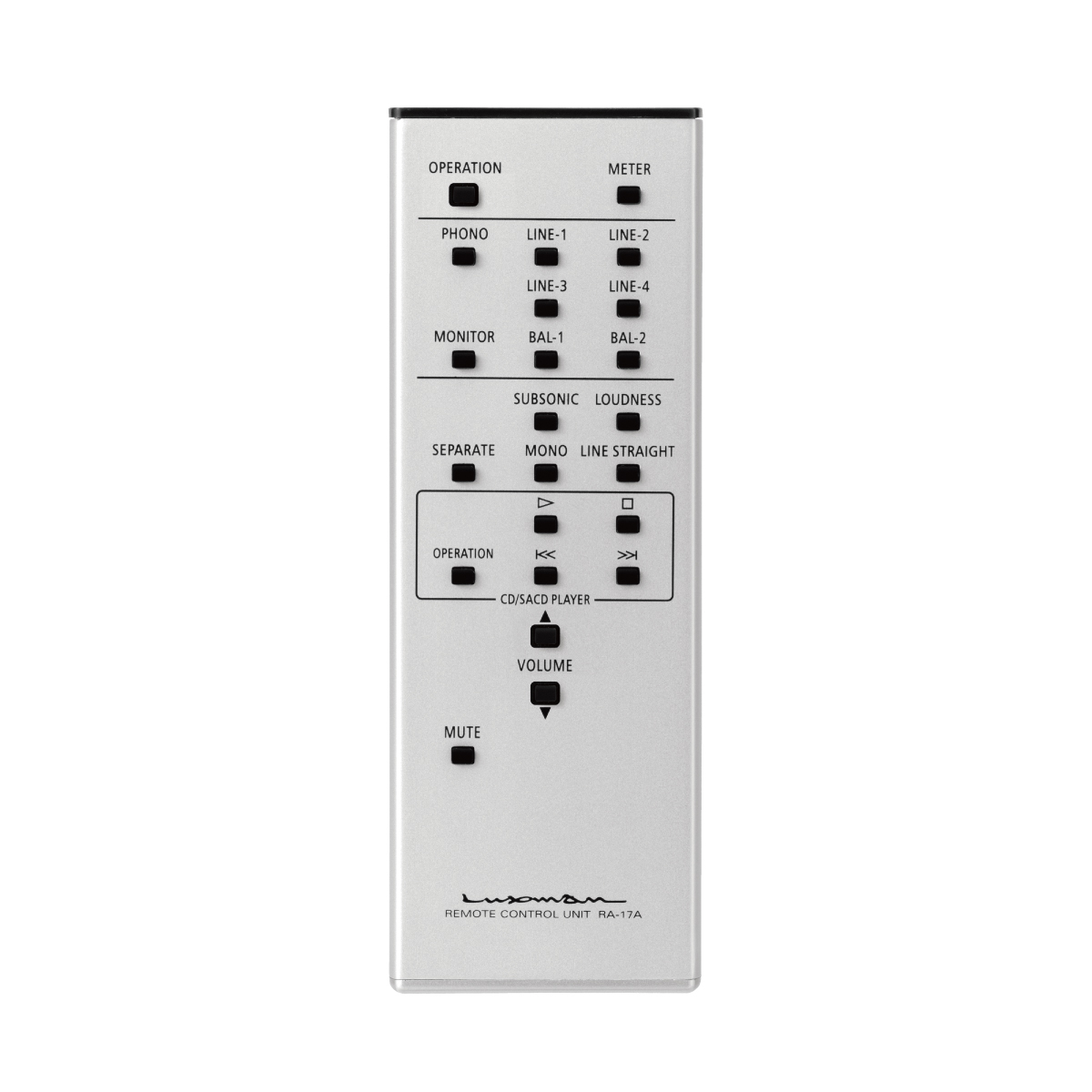

| Accessories | Remote controller (RA-17A), power cable |

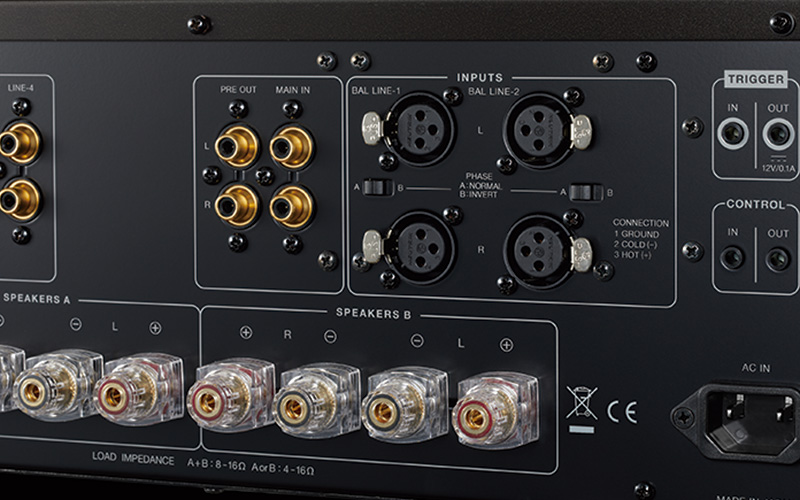

| Speaker Terminals Supported Y-lug terminal dimension | Width of part a : 15 mm or less Width of part b : 8 mm or more  * Connection may not be performed depending on the shape of the Y lug terminal. |
