8.500€
Specifications
| Rated output | 100W + 100W (8Ω), 150W + 150W (4Ω) |
| Input sensitivity/ input impedance |
PHONO (MM): 2.5mV/47kΩ PHONO (MC): 0.3mV/100Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/55kΩ MAIN IN: 1V/47kΩ |
| Output voltage | PRE OUT: 1V |
| Frequency response | PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB) |
| Total harmonic distortion | 0.009% or less (8Ω, 1kHz) 0.09% or less (8Ω, 20Hz to 20kHz) |
| S/N ratio (IHF-A) | PHONO (MM): 87dB or more PHONO (MC): 70dB or more LINE: 104dB or more |

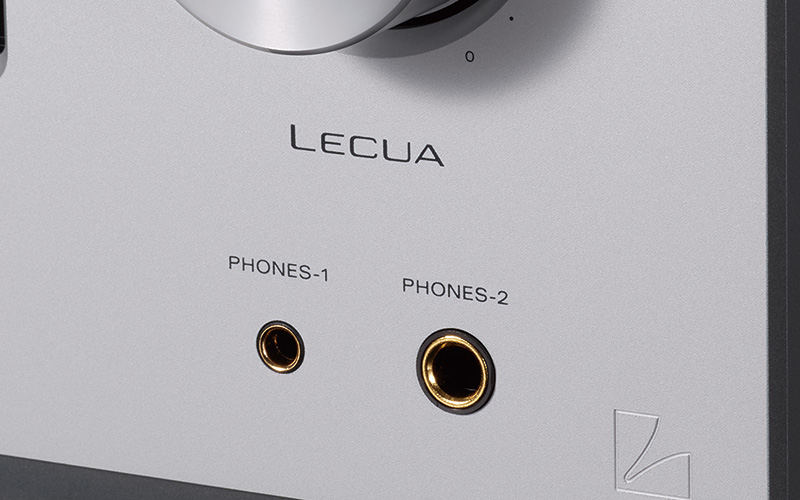

| Volume adjustment | LECUA |
| Amplification feedback circuit | LIFES 1.0 |
| Output configuration | Bipolar parallel push-pull |
| Damping factor | 200 |
| Max. amount of tone control | BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz |
|
| Power supply | 230V~(50Hz) / 115V~(60Hz) | |
| Power consumption | 330W 90W (under no signal), 0.5W (at standby) |
|
| External dimensions | 440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth |
|
| Net weight | 22.5kg (main unit) | |

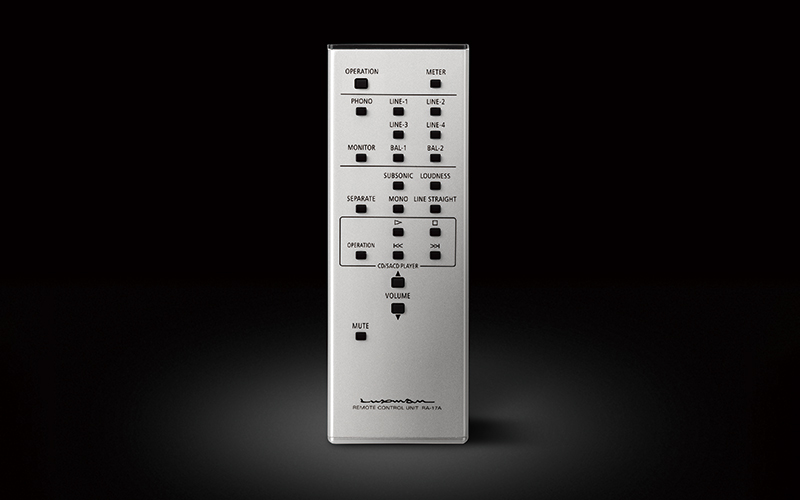

| Accessories | Remote control (RA-17A) Power cable |
|

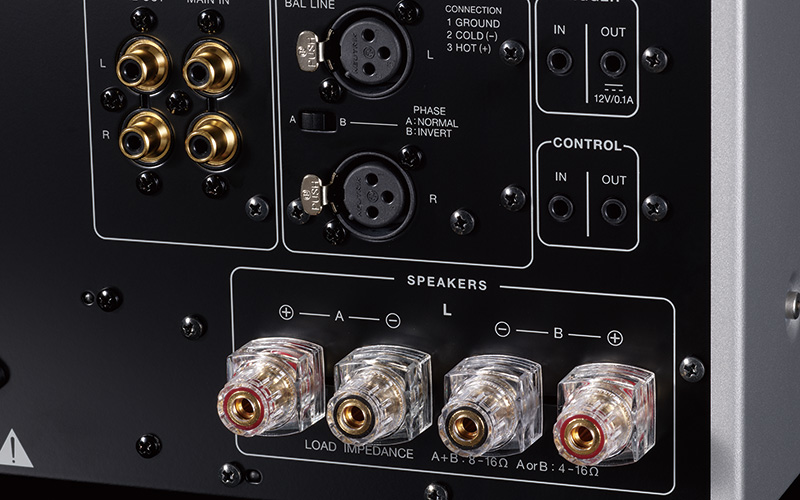

| Speaker terminal Supported Y-lug terminal dimension |
Width of part a: 15mm or less Width of part b: 8mm or more* Connection may not be performed depending on the shape of the Y-lug terminal. |
* Slide the phase selector switch to the INVERT position to make the balanced input terminals pin No 2 to change to HOT, and No. 3 to COLD.

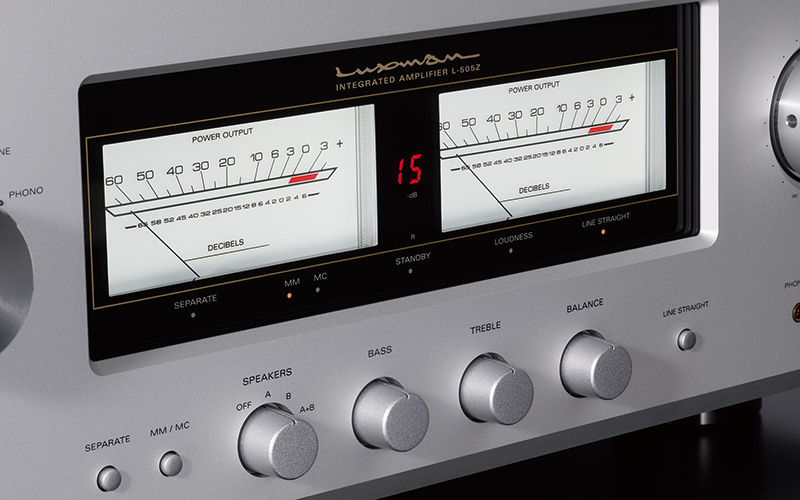

* Meter lighting, monaural, subsonic, and loudness can be switched with the remote control.
* Specifications and appearance are subject to change without notice.
* The products listed in this catalog do not include line cables. Please purchase cables separately.
