1.500 €

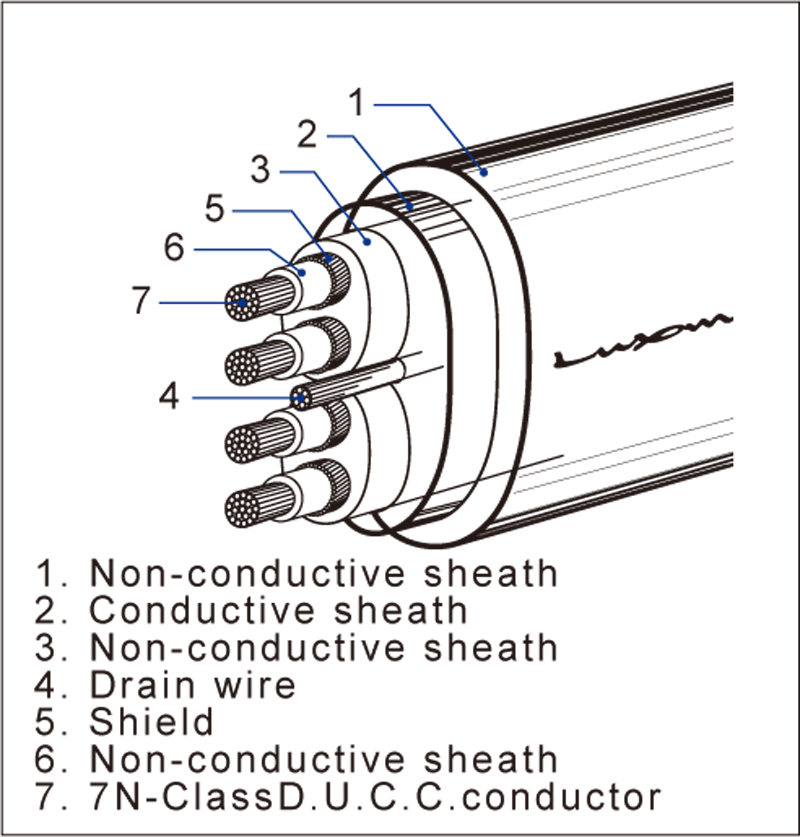

| Structure | Non-twisted construction |
| Core wire | High-purity copper (7N CLASS D.U.C.C.)wire Φ0.26mm x 60pcs, Oxygen-free copper (OFC) wire, Φ0.26mm x 40pcs |
| Insulator / Sheath | Polyethylene (red, primary color)/PVC(blue) |
| Drain wire | Oxygen-free copper (OFC) wire, Φ0.08mm x 30pcs |
| Conductor resistance | 4mΩ/m or less (at 20°C) |
| Insulation resistance | 5000MΩ/m or more (at 20°C) |
| Capacitance | 86pF/m or less |
| Withstand voltage | 1,000VAC (for 1 minute) |
| Cable outside diameter | 10.5mm x 20mmQ |
