POWER SUPPLY
Nominal line voltage: 117 or 234 V (switchable)
Fuse 2.5A for 115V & Fuse 1A for 230V
Input voltage range: +/- 10 %
ANALOGUE INPUTS
3 x pair RCA
1 x pair XLR balanced
DIGITAL INPUTS
2 x Digital S/PDIF
1 x Toslink Optical
1 x USB AUDIO (up to 384 kHz PCM up to
DSD512)

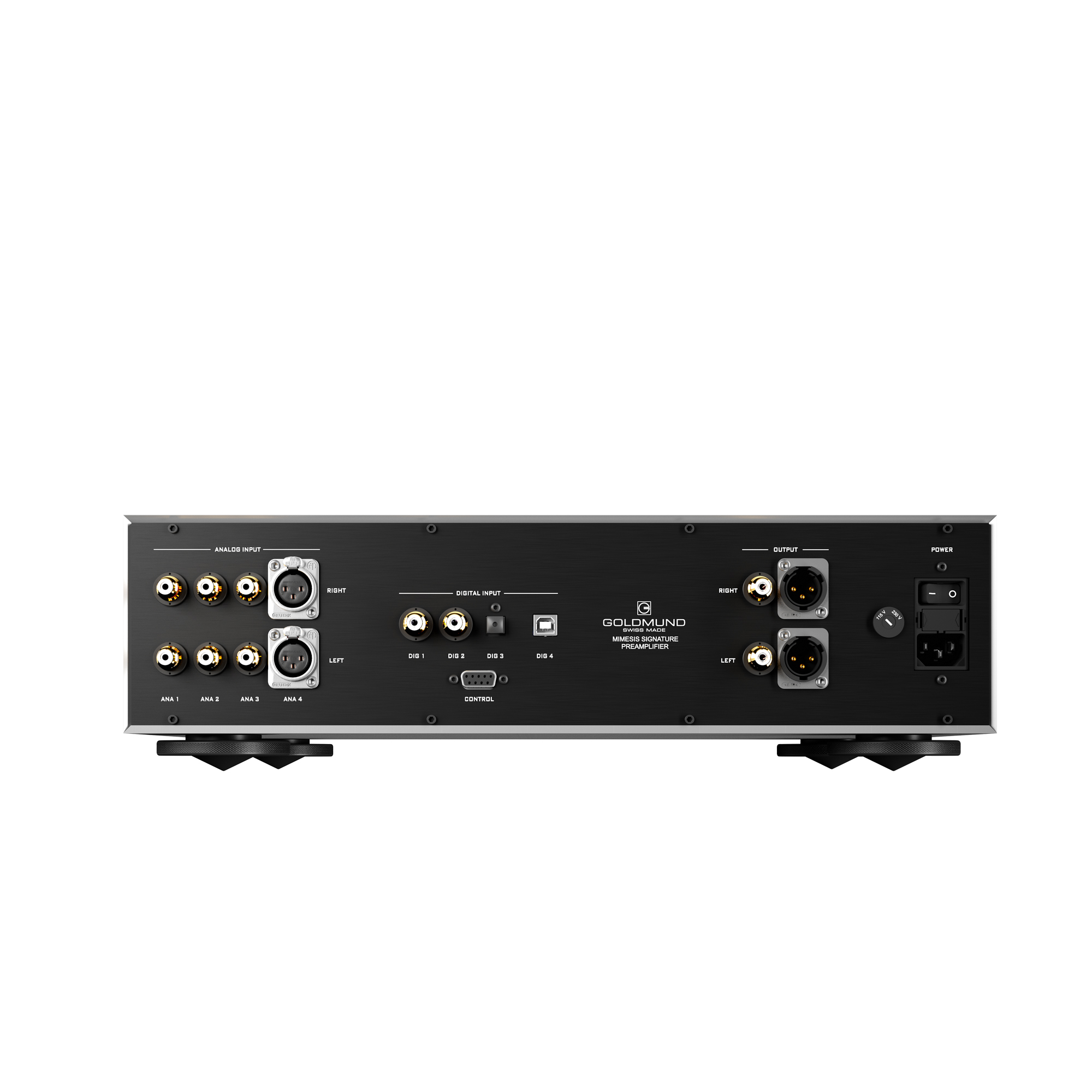

REAR PANEL CONNECTORS & CONTROLS
ON/OFF power switch key
Voltage input selector
RS232 Command connector
INPUT
Input impedance: 50 kOhms
Nominal input level: 2.25 V RMS
Maximum input level (unbalanced): 4V RMS
Maximum input level (balanced): 2V RMS
OUTPUT
1 x pair of RCA
1 x pair XLR balanced

FREQUENCY RESPONSE
These values for any level to maximum output level
+/- 0.1 dB, 10 Hz – 20 kHz
+/- 1.5 dB, 10 Hz – 100 kHz
+/- 3 dB, 10 Hz – 200 kHz
DISTORTION
With 1 V RMS output level, 80 KHz measurement
bandwidth, 600 Ohms termination impedance
THD unbalanced in to unbalanced out < 0.005%
(-90 dB) flat with frequency
IMD unbalanced in to unbalanced out < 0.002%
(-80 dB)
NOISE
Signal-to noise ratio: > 120 dB at 0 dBFS
OPERATING TEMPERATURE
Room temperature: -30 to +40 degrees Celsius
(-22 to +104 degrees Fahrenheit)
Internal temperature: +45 to +65 degrees Celsius
(+113 to +149 degrees Fahrenheit)
SIZE & WEIGHT
44 W x 40 D x 13.2 H (cm) – 17.32 W x 15.75 D
x 5.20 H (inch)
15 kg
COLOURS
Silver Grey
