TechDAS TDC01 Dıa Cartrıdge

ÖZELLİKLER

TechDAS

SPECIFICATIONS
Type:	Moving Coil (MC)
Frequency response	10 – 50,000 Hz
Output voltage:	0.45mV (1kHz)
Internal impedance:	1.4 ohm
Recommended load impedance:	100 – 200 ohm
Tracking force recommended:	2.0 – 2.5g
Cartridge weight:	17g
Cantilever:	Diamond (tapered pipe)
Stylus tip:	Semi-line contact (3μm x 30μm)

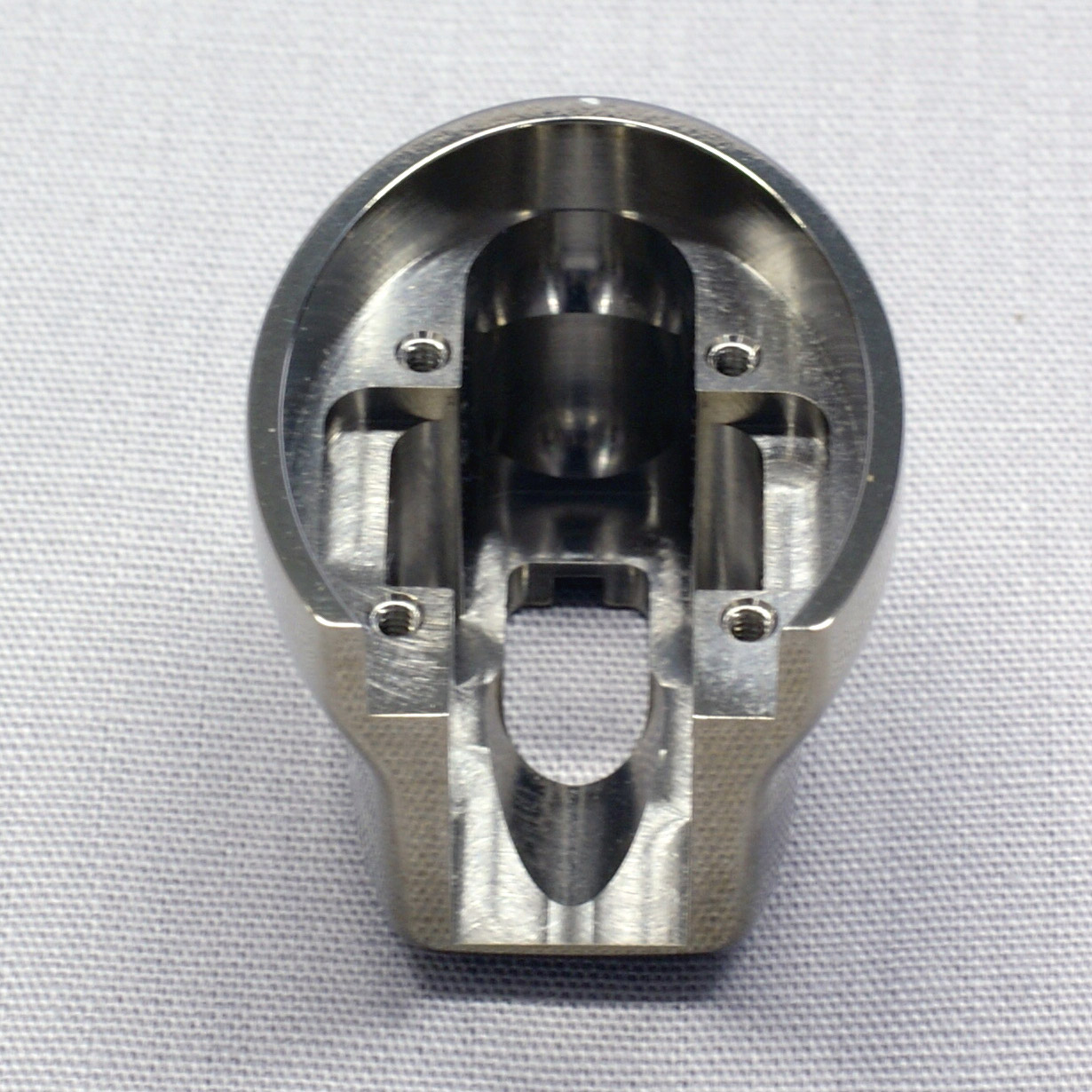

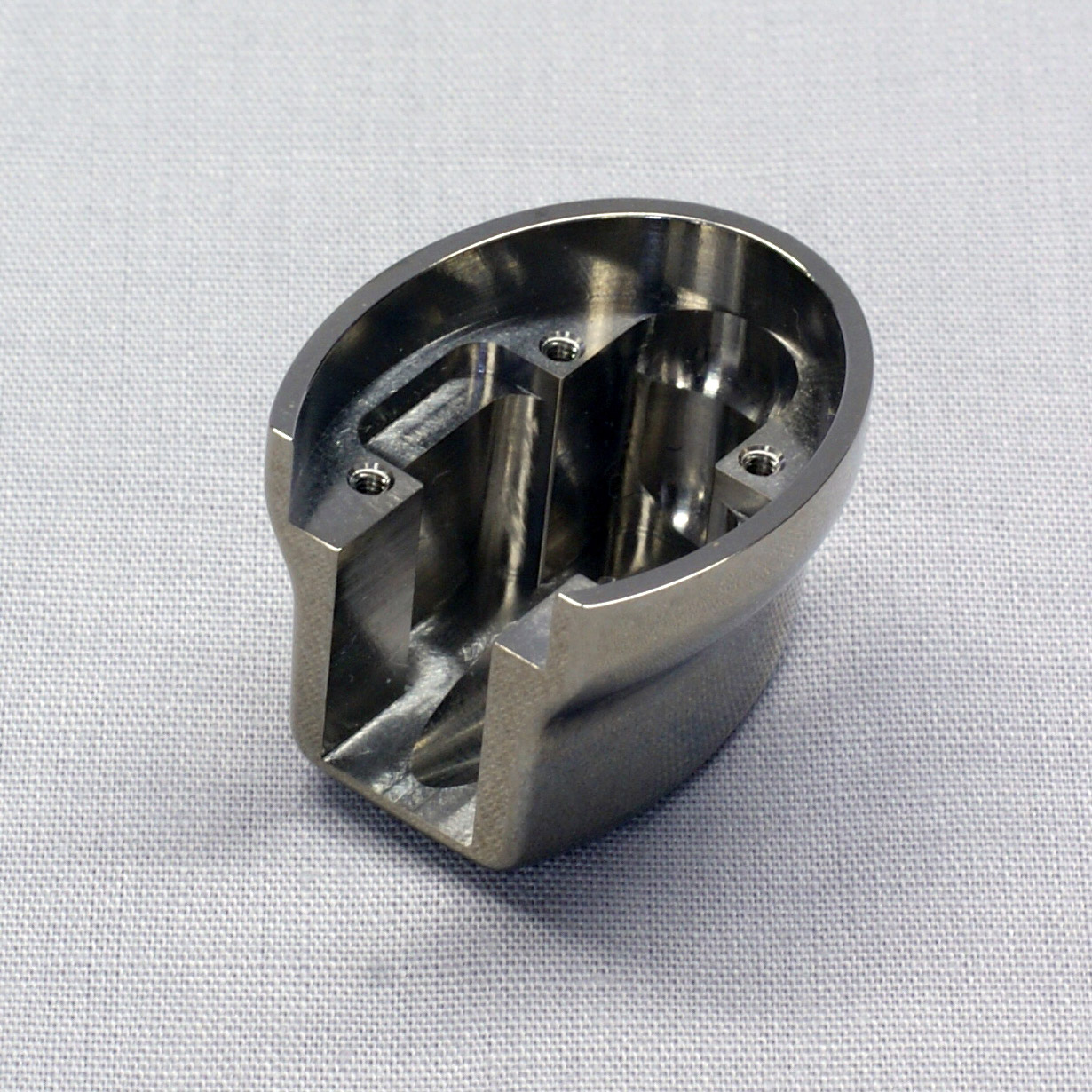

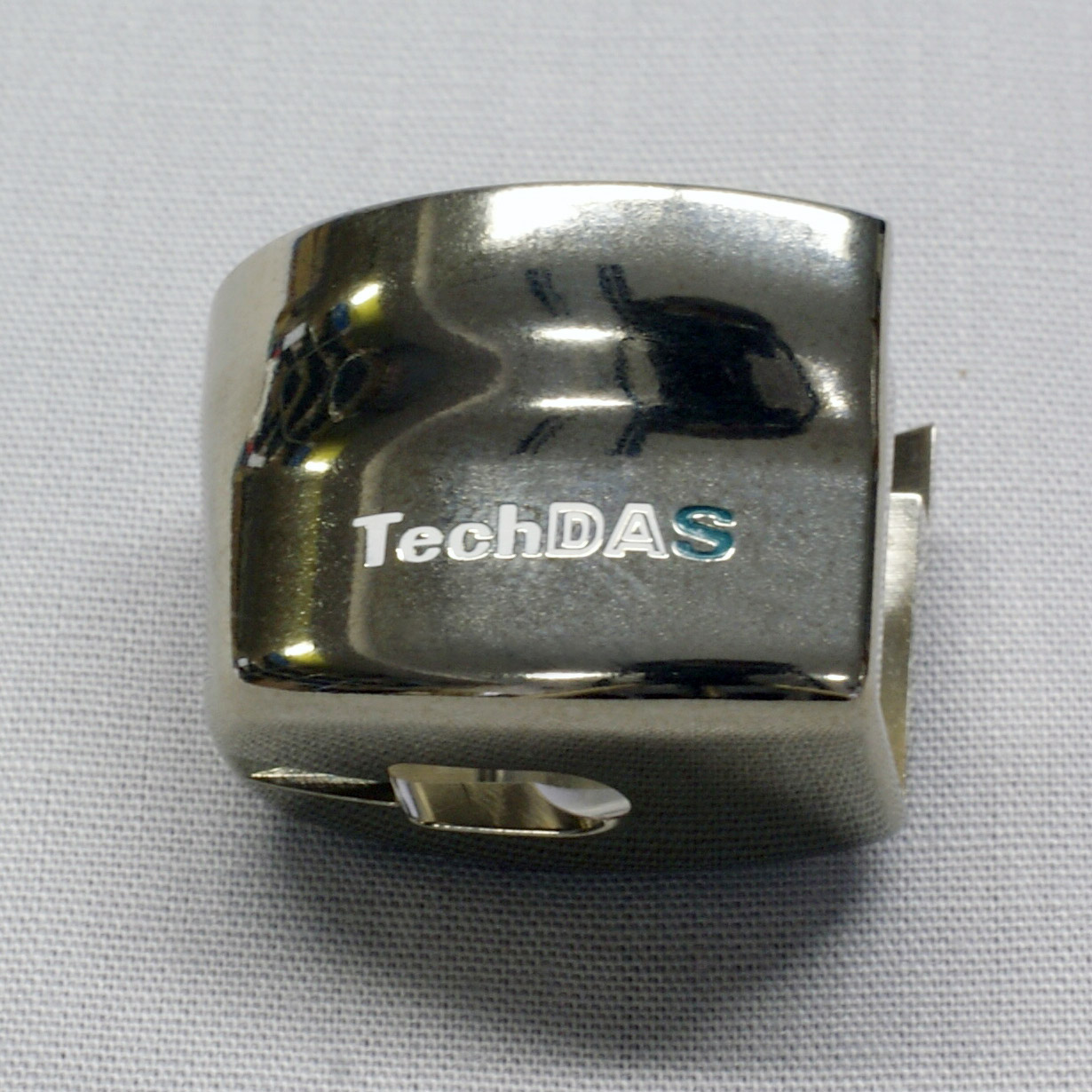

Housing:	Titanium with special processed hard surface treatment

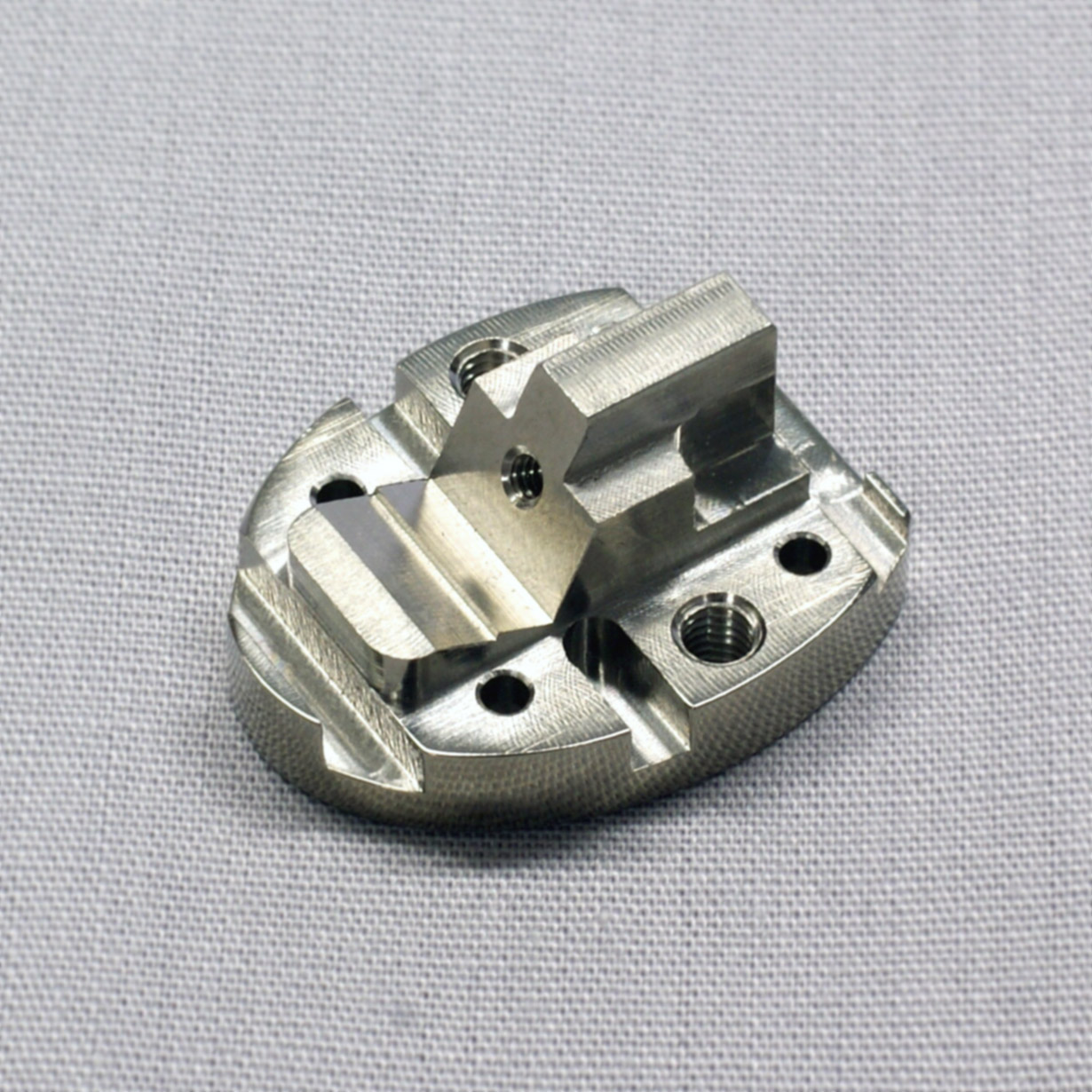

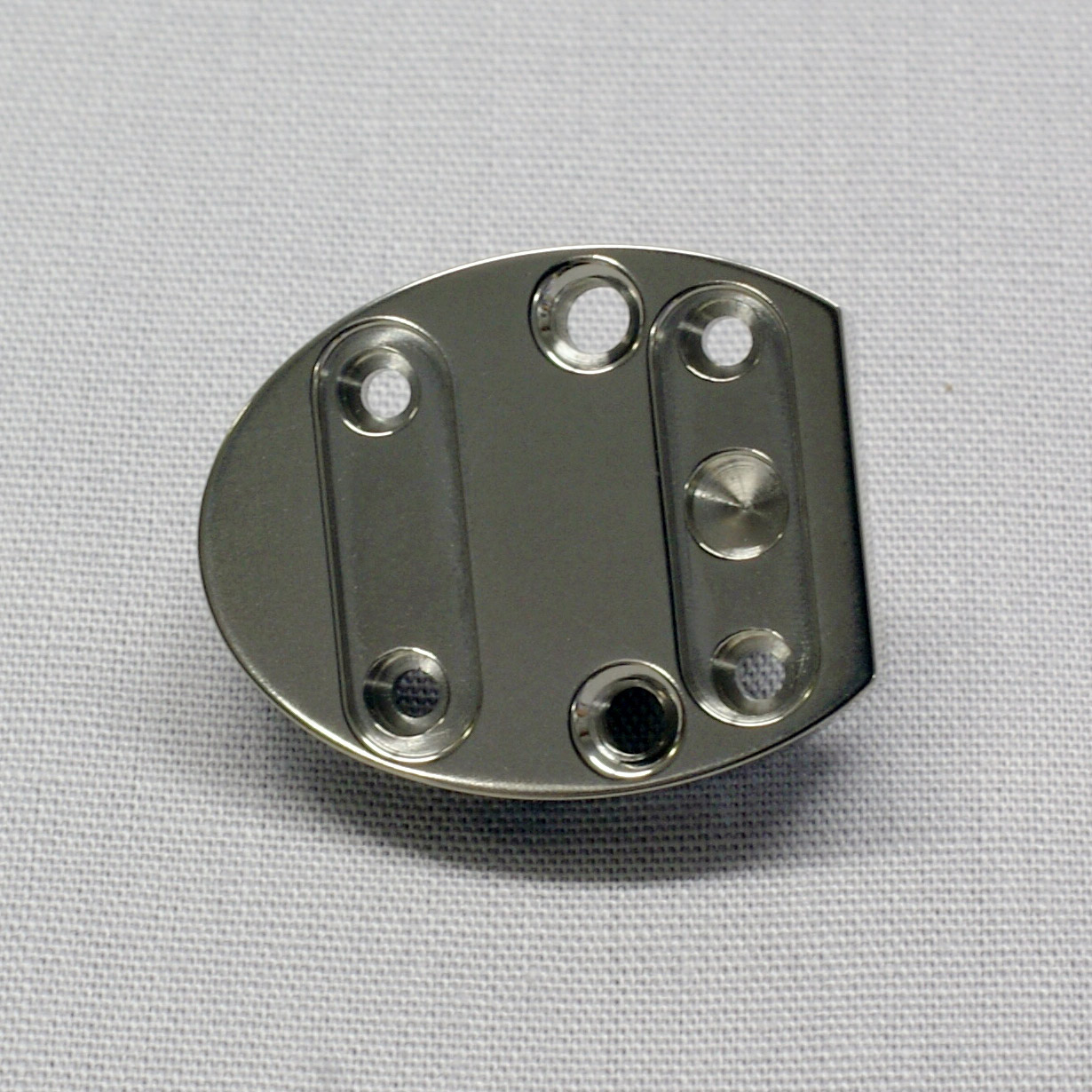

Housing base:	Titanium with special processed hard surface treatment + damping treatment
Channel balance:	0.5dB (1kHz)
Channel separation:	over 30dB (1kHz)
