| Supported discs | CD, MQA-CD |
|---|---|
| Supported sampling frequencies | USB input (PCM) : 44.1 kHz, 48 Hz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz (16, 24, 32-bit) USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit) Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit), 2.8 MHz (DoP) |
| Analog output voltage / impedance | Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω |
| Frequency response | CD : 5 Hz to 20 kHz (+0, -1.0 dB) COAX / OPT : 5 Hz to 47 kHz (+0, -3.0 dB) USB : 5 Hz to 47 kHz (+0, -3.0 dB) |
| Total harmonic distortion | CD : 0.002 %, COAX / OPT : 0.001 %, USB : 0.001 % |
| S/N ratio (IHF-A) | CD : 110 dB, COAX / OPT :118 dB, USB : 118 dB |
|---|---|
| D/A converter | ROHM BD34352EKV (monaural mode) x 2 |
| Power supply | 230 V – (50 Hz) / 115 V – (60 Hz) |
| Power consumption | 16 W |
| Dimensions | 440 (W) x 133 (H) x 410 (D) mm front side knob of 2 mm and rear side terminal of 8 mm included in depth |
| Net weight | 13.2 kg |

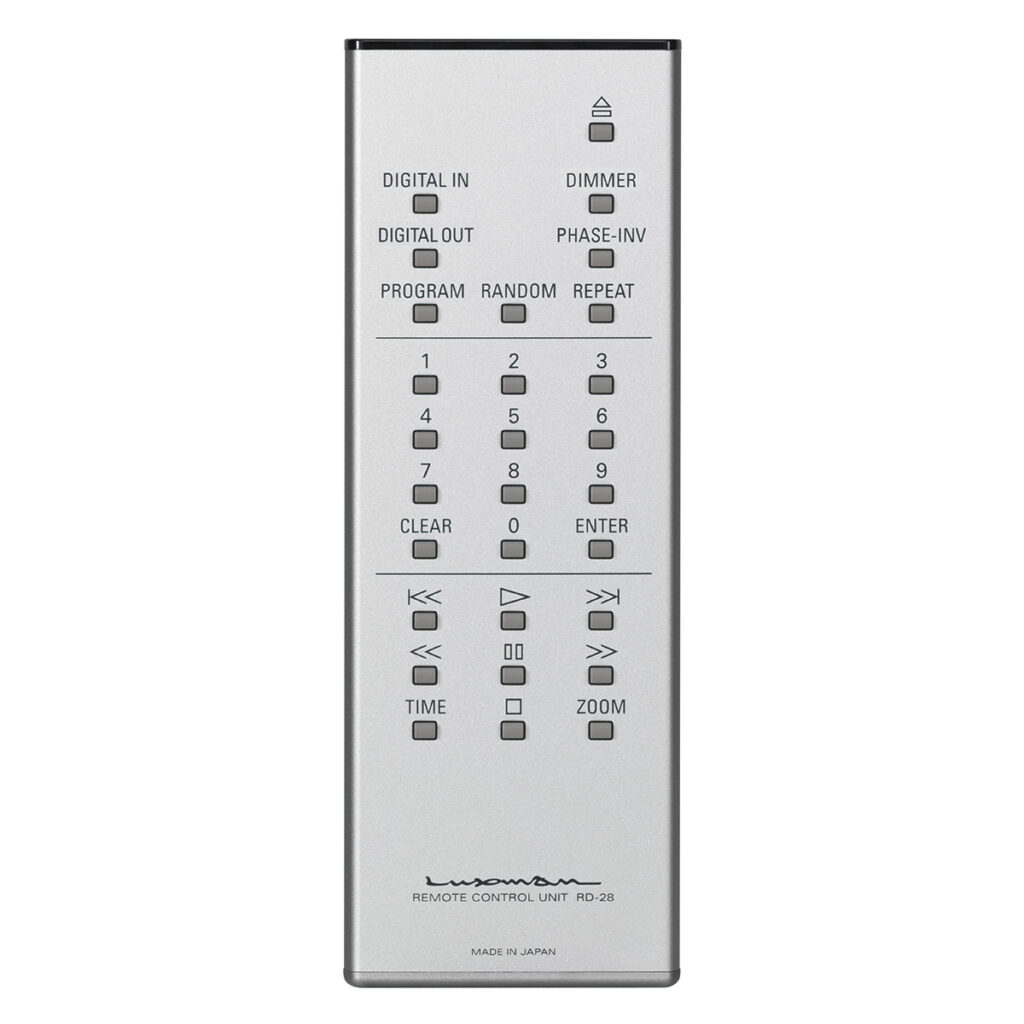

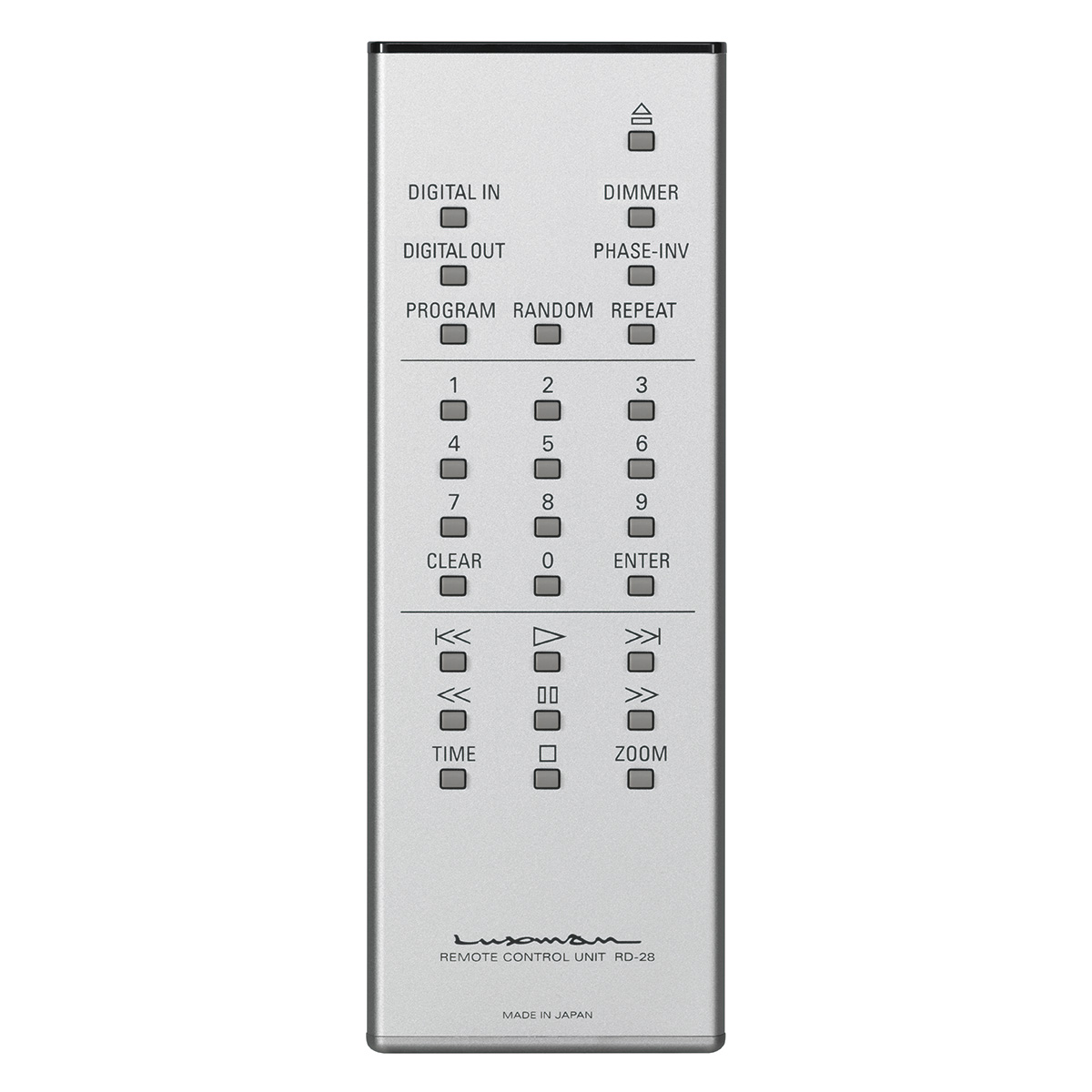

| Accessories | Remote control (RD-28), Power cable |
