POWER SUPPLY
Nominal line voltage: 115 V or 230 V
Input voltage range: +/- 15 %
2x 300 VA Toroidal Power Transformer
Capacitor bank: 13’600 μF
RATED POWER CONSUMPTION
IEC 60065, 1/8 Output Power at 8 Ω: 250 W

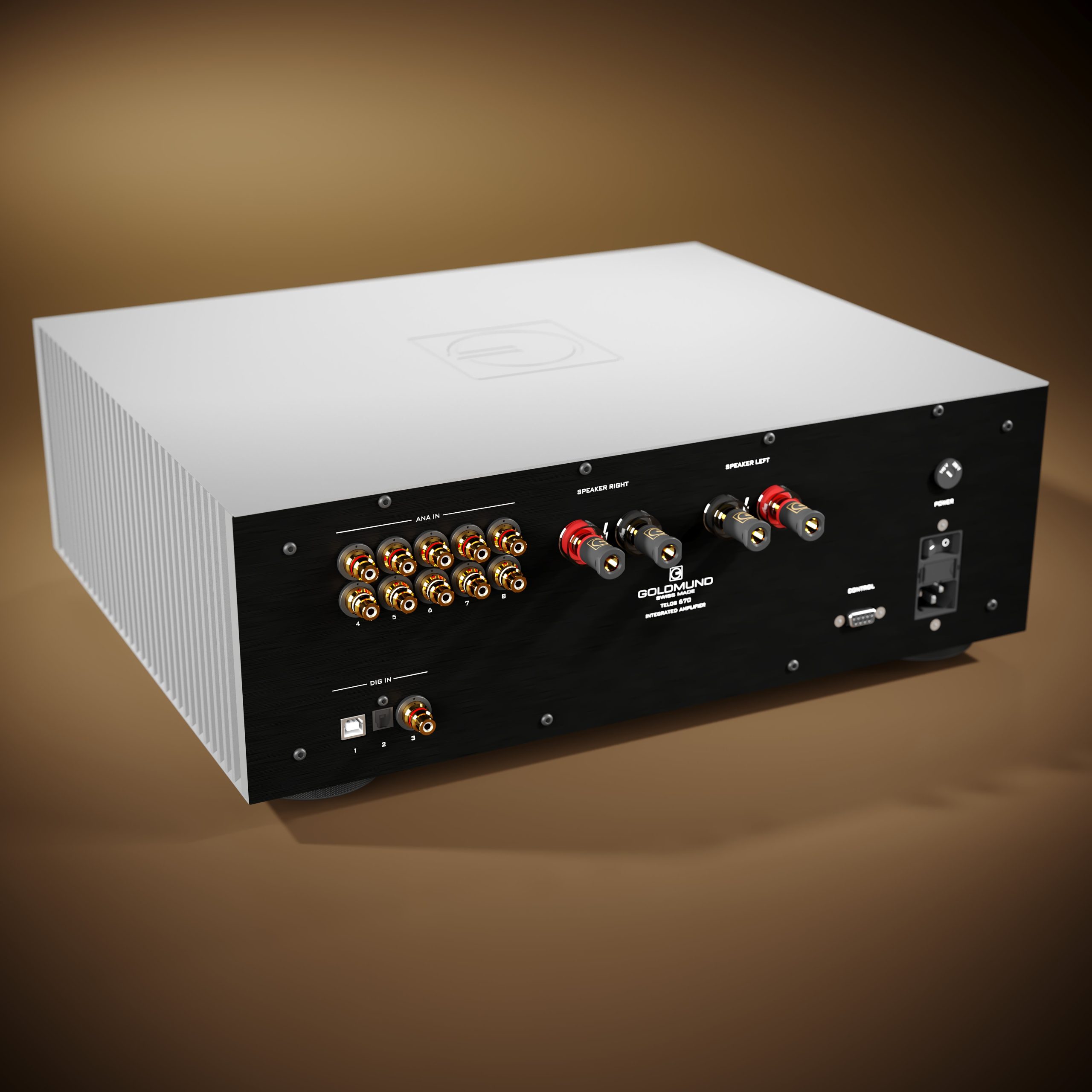

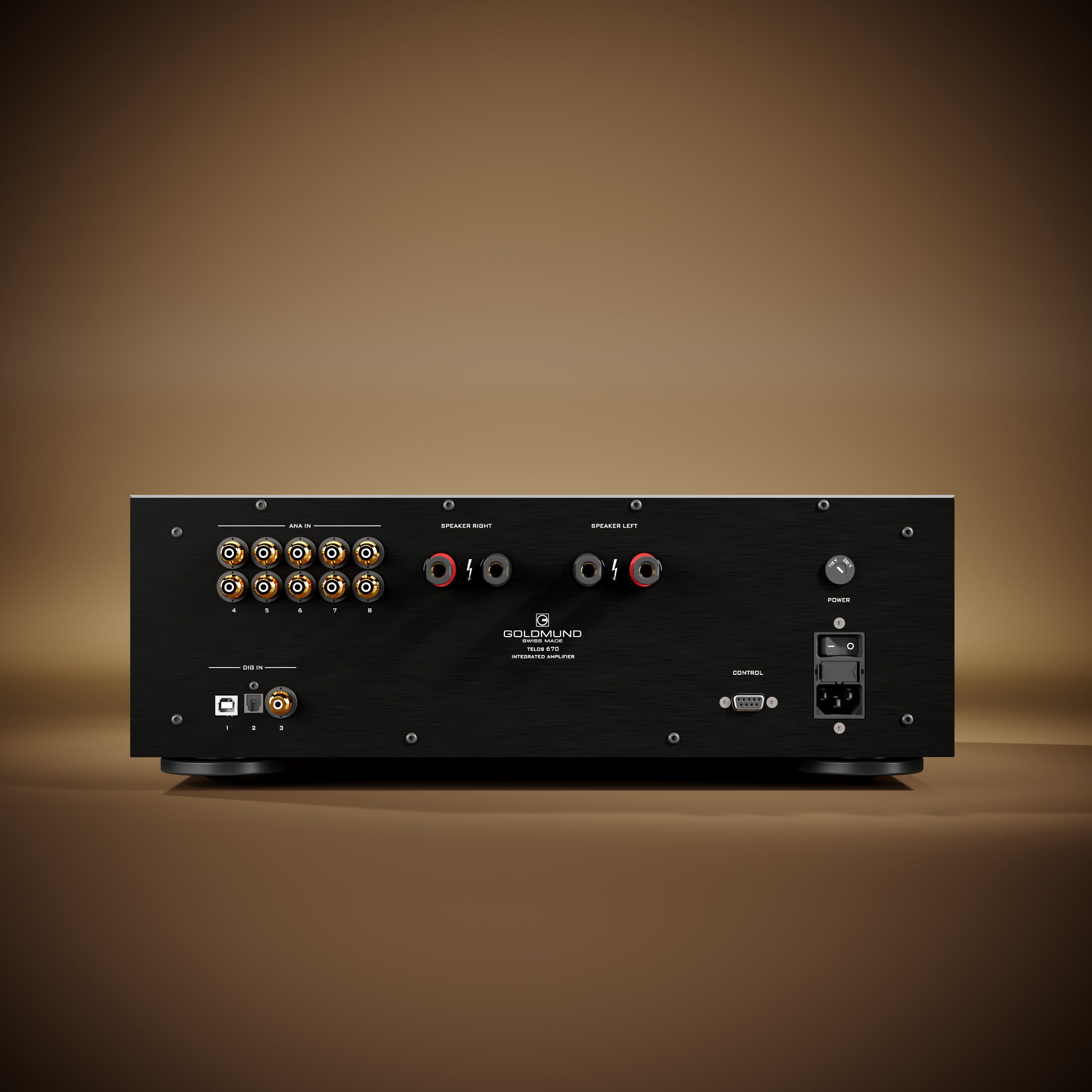

REAR PANEL
2 x output binding posts (left & right)
On/Off power switch key
Voltage input selector
RS232 Command connector
1 x USB device: Audio Class 2.0 (no driver required
on Mac OS X as of v.10.6.4 nor on Linux,
driver required only for Windows, contact your
Goldmund representative):
• Sample rate up to 384 kHz/Bit depth up to 32.
• DSD64, DSD128 over PCM capabilities
1 x Toslink Optical
1 x Digital S/PDIF coaxial RCA 75 Ohms
5 x Analog RCA (left & right)
INPUT
Max level before clipping, Analog input: 1 Vrms
Max level before clipping, Digital input: -6 dBFS
OUTPUT
Max level before clipping, 1 % THD, unloaded:
170 Vpp
OUTPUT POWER
Maximum power (IEC60065): 2 x 215 Wrms on 8
Ω / 1 % THD
DISTORTION
IMD (SMPTE), unloaded: < 0.02 %
THD+N, unloaded: < 0.08 % from 20 Hz to 20
kHz at 30 Vrms output
OUTPUT NOISE FLOOR
Analog input terminated with RCA Shorting Caps,
unloaded: < 10 μV from 20 Hz to 20 kHz
GAIN
35 dB
DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS
unloaded: 100 dB
DAMPING FACTOR
600 at 1 kHz / 8 Ω
PRODUCT SIZE & WEIGHT
44 W x 16 H x 39.5 D (cm)
17.32 W x 6.30 H x 15.55 D (inch)
24.5 Kg
CARTON BOX SIZE & WEIGHT
44 W x 16 H x 39.5 D (cm)
17.32 W x 6.30 H x 15.55 D (inch)
24.5 Kg
COLOR
Standard: Gray

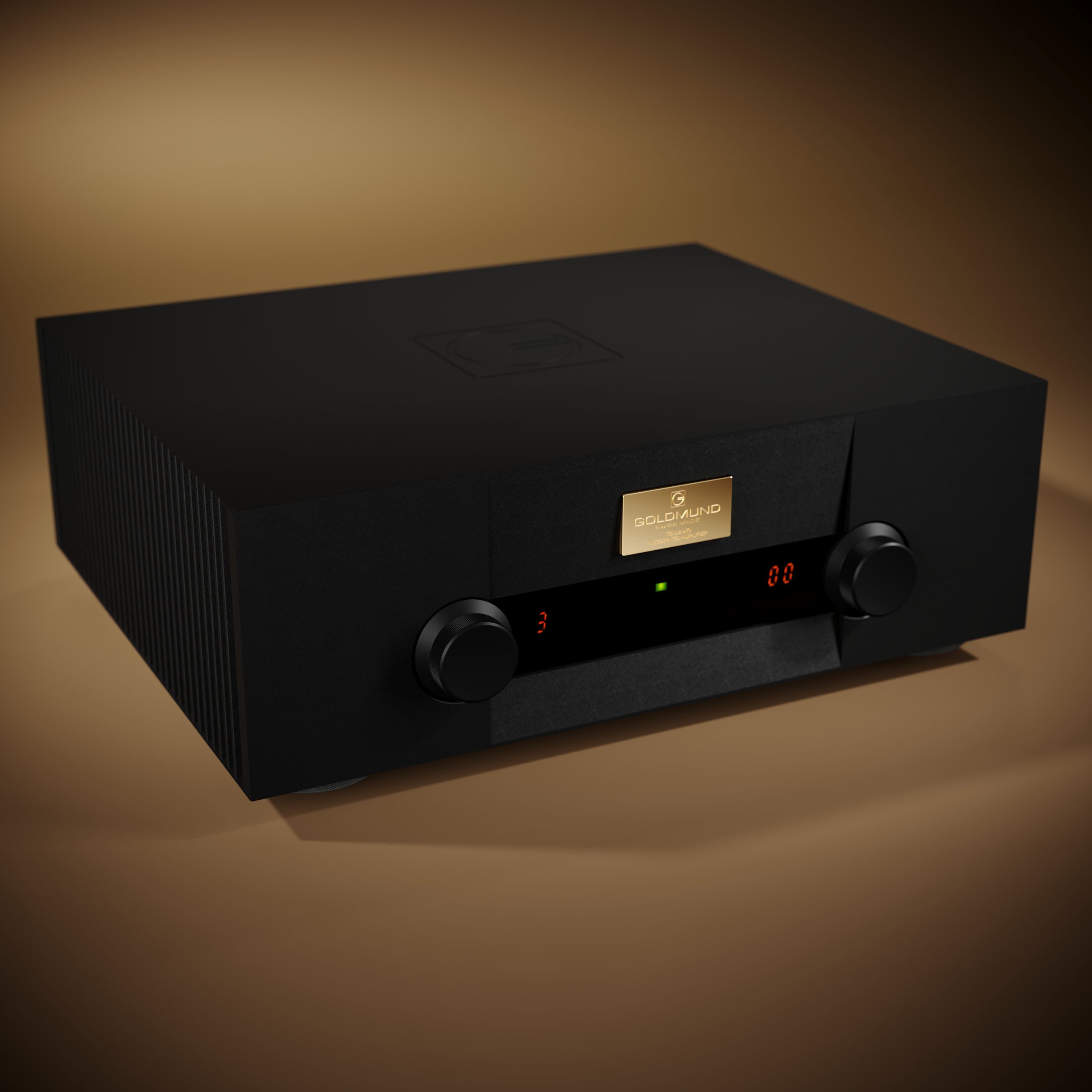

On request: Blakck
