OUTPUT POWER
Maximum power (IEC60065): 420 Wrms on 8 Ω / 1 % THD
Maximum power (IEC60065): 550 Wrms on 4 Ω / 1 % THD
DAMPING FACTOR
600 at 1 kHz / 8 Ω
DISTORTION
IMD (SMPTE), unloaded: < 0.05 %
THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output
OUTPUT NOISE FLOOR
Analogue input terminated with RCA Shorting Caps, unloaded: < 3 μV from
20 Hz to 20 kHz
GAIN
35 dB
INPUT
Max level before clipping, Analogue input: 1 Vrms
Max level before clipping, Digital input: -6 dBFS
OUTPUT
Max level before clipping, 1 % THD, unloaded: 170 Vpp
POWER SUPPLY
Nominal line voltage: 115 V or 230 V
Input voltage range: +/- 15 %
2500 VA Toroidal Power Transformer
Capacitor bank: 78’400 μF
RATED POWER CONSUMPTION
IEC 60065, 1/8 Output Power at 8 Ω: 250 W
REAR PANEL
1 x Power cord: universal socket 3 lugs
1 x Main fuse (5A slow-blow for 220 V) ; (10A slow-blow for 110 V)
1 x Green-yellow AC earth binding post (with bridge connection)
1 x Ground lift switch
2 x output binding posts (red & black)
1 x output Goldmund speaker 4B type connector
1 x Analogue RCA input (unbalanced connector)
1 x Analogue XLR input (balanced connector)
1 x Digital input and output RCA connectors
1 x RS232 command connector
GAIN
35 dB
DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS unloaded: 110 dB
COLOR
Standard International: Grey with top grey ring

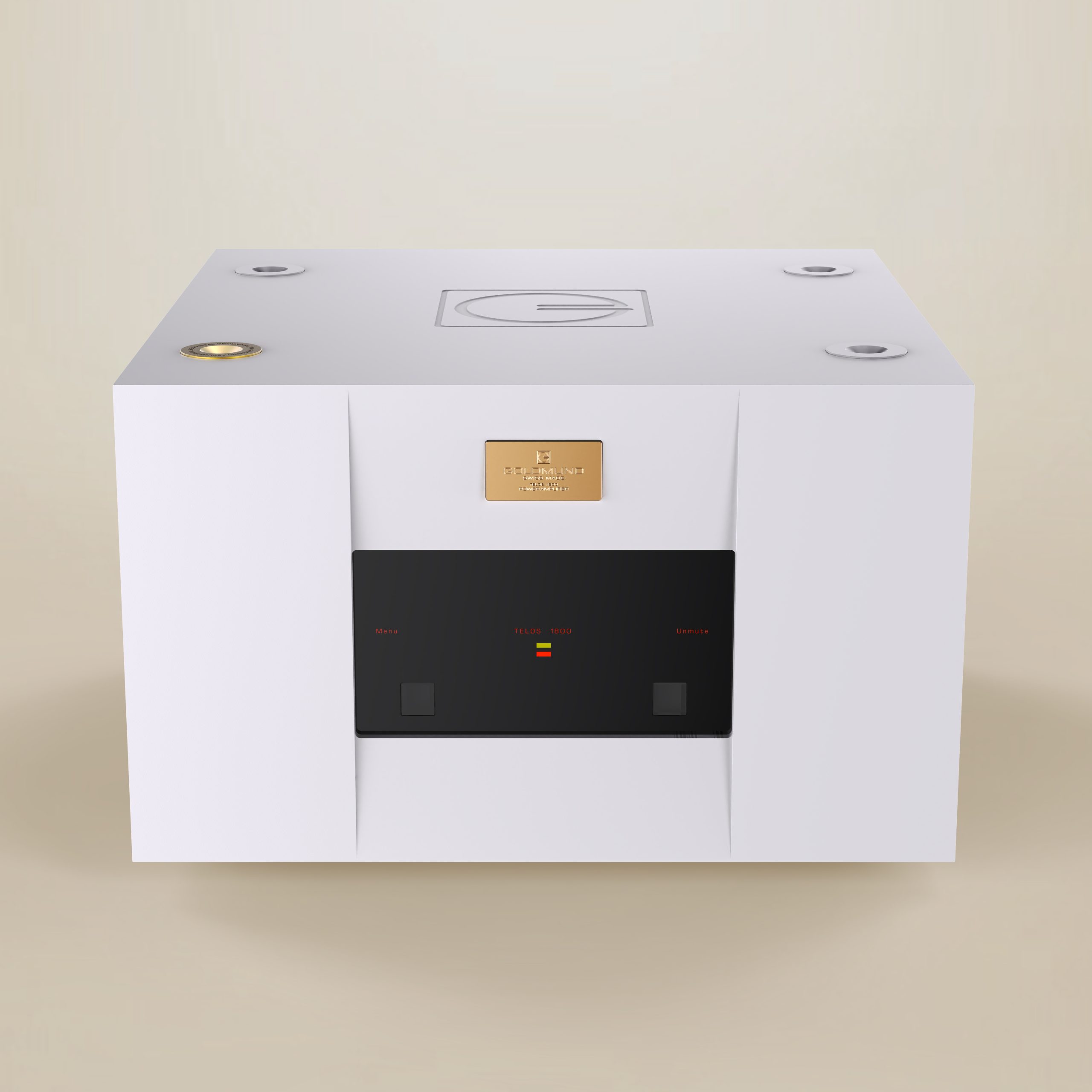

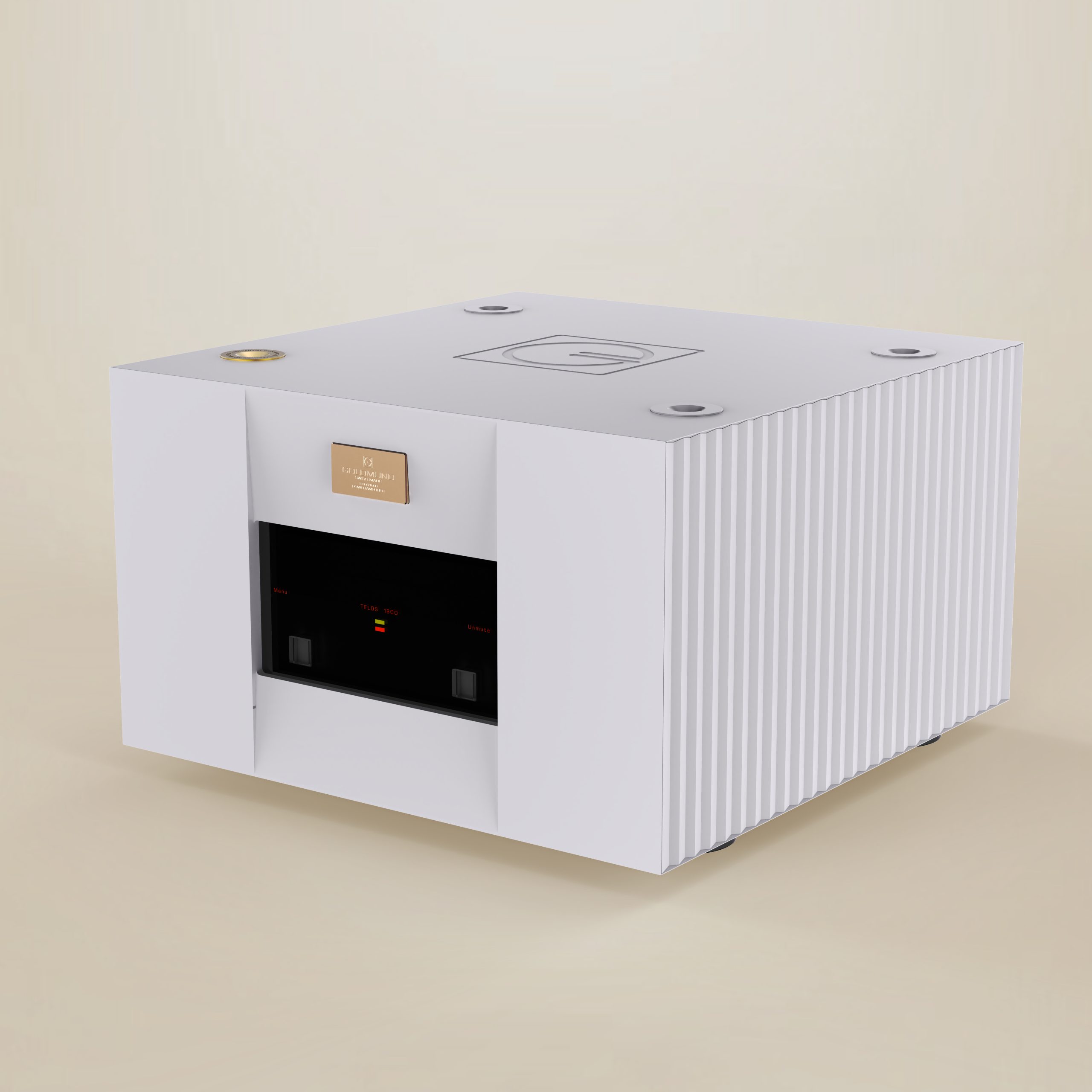

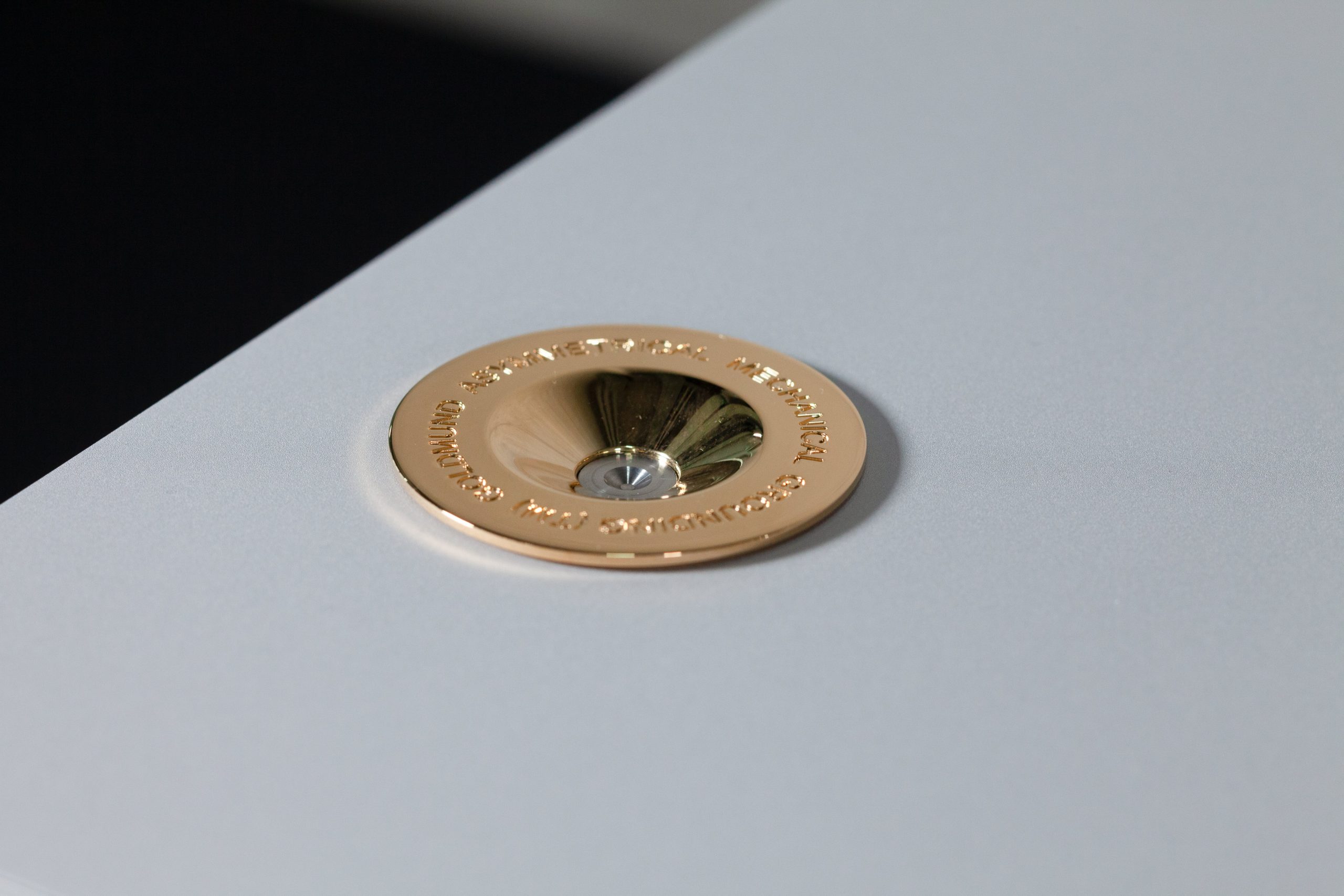

Standard China: Grey with top gold ring
On Request: Black
