FRONT PANEL

GAIN control.
CARTRIDGE selection.

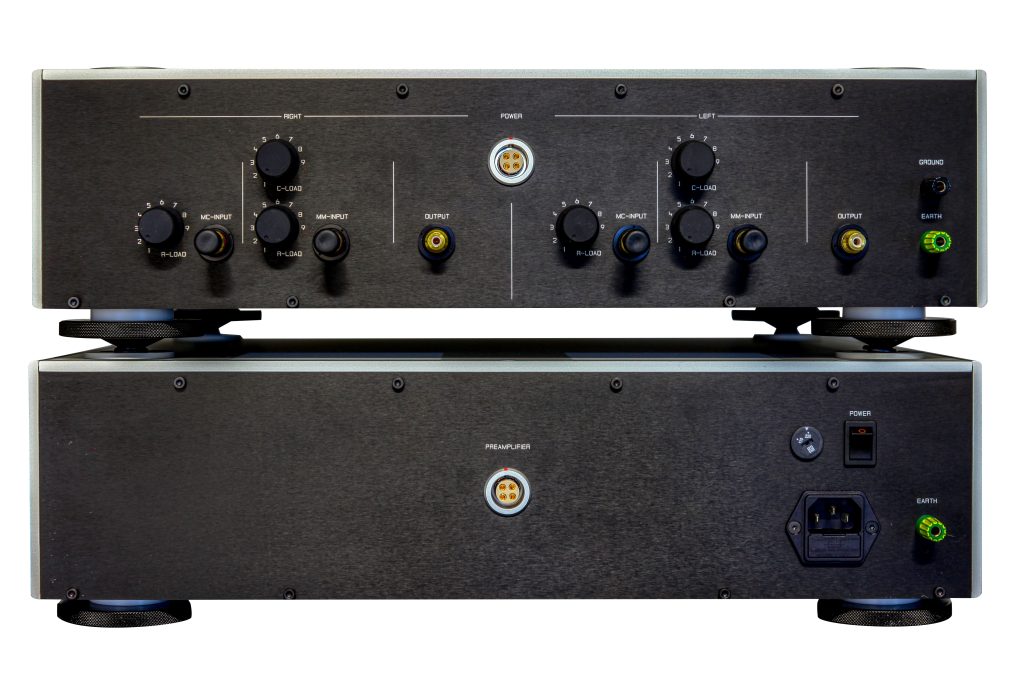

REAR PANEL

Power connector.
1x pair of RCA MM-input connectors (right & left).
1x pair of RCA MC-input connectors (right & left).
1x pair of RCA output connectors (right & left).
1x pair of RCA output connectors (right & left).
CARTRIDGE load selectors.
AC GND binding post.
AC EARTH binding post.

GAIN MM INPUT

43 dB (low) and 50 dB (high).

GAIN MC INPUT

63 dB (low) and 70 dB (high).

RIAA CURVE

– 0.03 dB / + 0.06 dB max derivation from RIAA curve.

GAIN STAGE RESPONSE

– 3 dB 0.12 Hz – 760 kHz at 70 dB gain (without RIAA correction).

SLEW RATE

> 80 V/us.

RISE TIME

< 400 ns.

DISTORTION

< 0.007 % (20 Hz-20 kHz at 4 Vrms output).

OUTPUT IMPEDANCE

50 Ohms.

MAX OUTPUT LEVEL

32 Vpp Power.

SIZE

PREAMPLIFIER & POWER SUPPLY

44 W x 38.6 D x 13.2 H (cm).

WEIGHT

PREAMPLIFIER

10 kg.

POWER SUPPLY

12 kg.
