INPUTS
3 digital inputs
• 1 x USB device: Audio Class 2.0
• no driver required on Mac OS X as of v.10.6.4 nor on Linux; driver
required only for Windows (contact your Goldmund representative)
• Sample rate up to 384 kHz/Bit depth up to 32
• DSD64, DSD128 over PCM capabilities
• 1 x Toslink Optical (up to 384kHz/24bits)
• 1 x Digital S/PDIF coaxial RCA 75 Ohms (up to 384kHz/24bits)
1 analog input
• RCA 2-channel
OUTPUTS
4 parallel Digital RCA S/PDIF 2-channel outputs
1 Wireless outputs 4 channels max

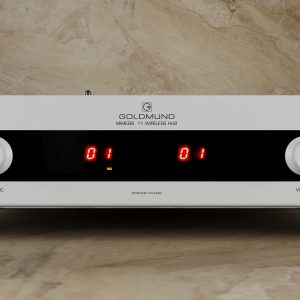

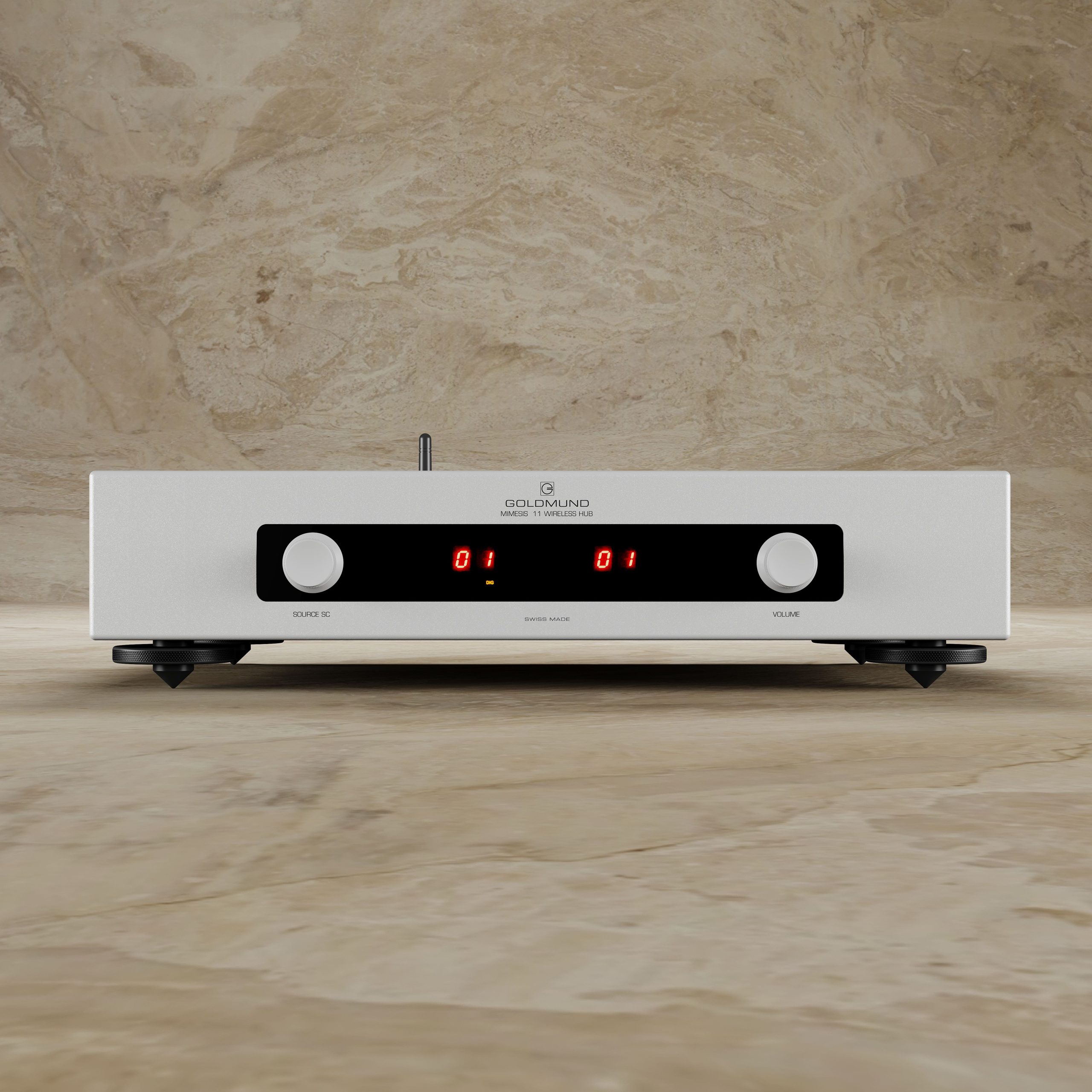

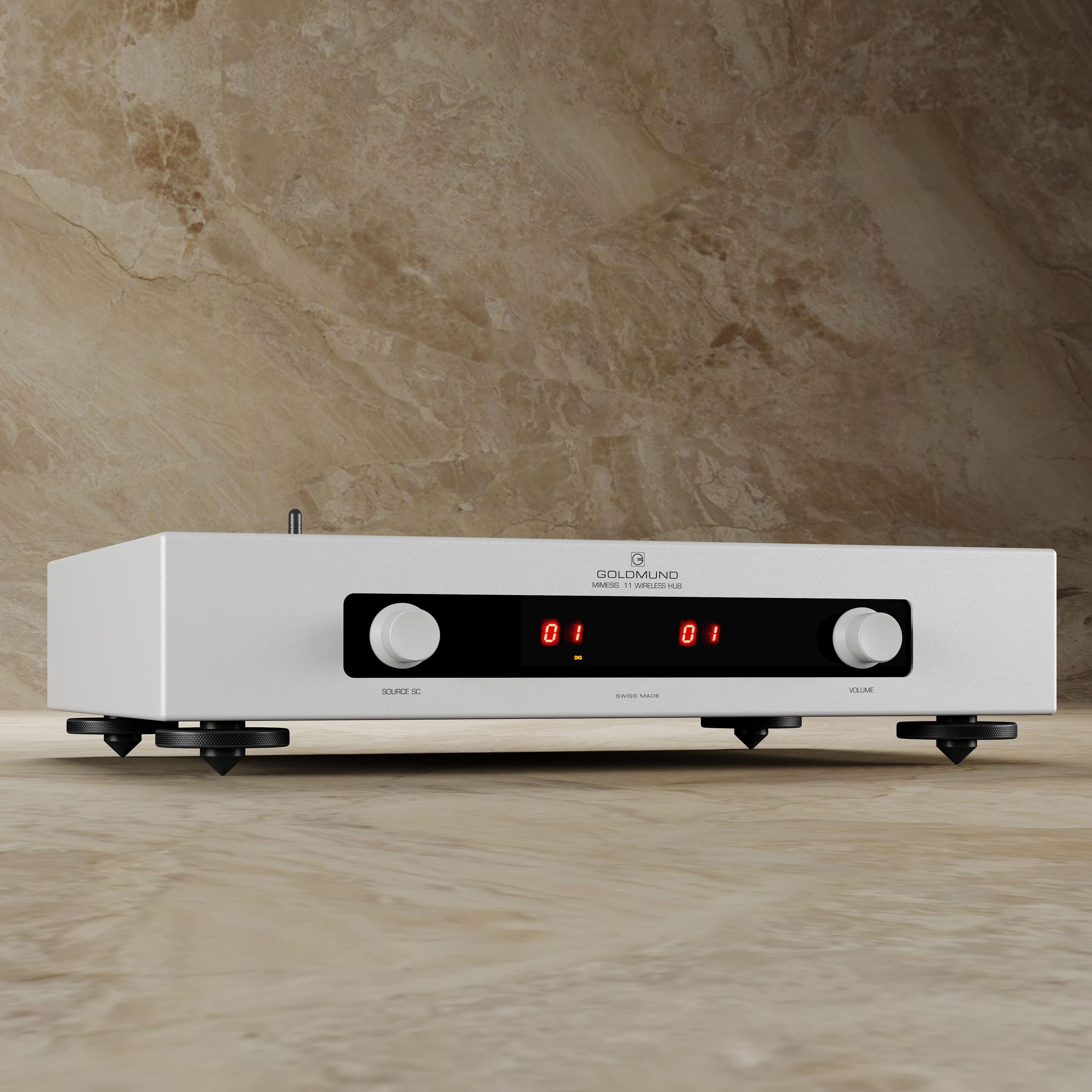

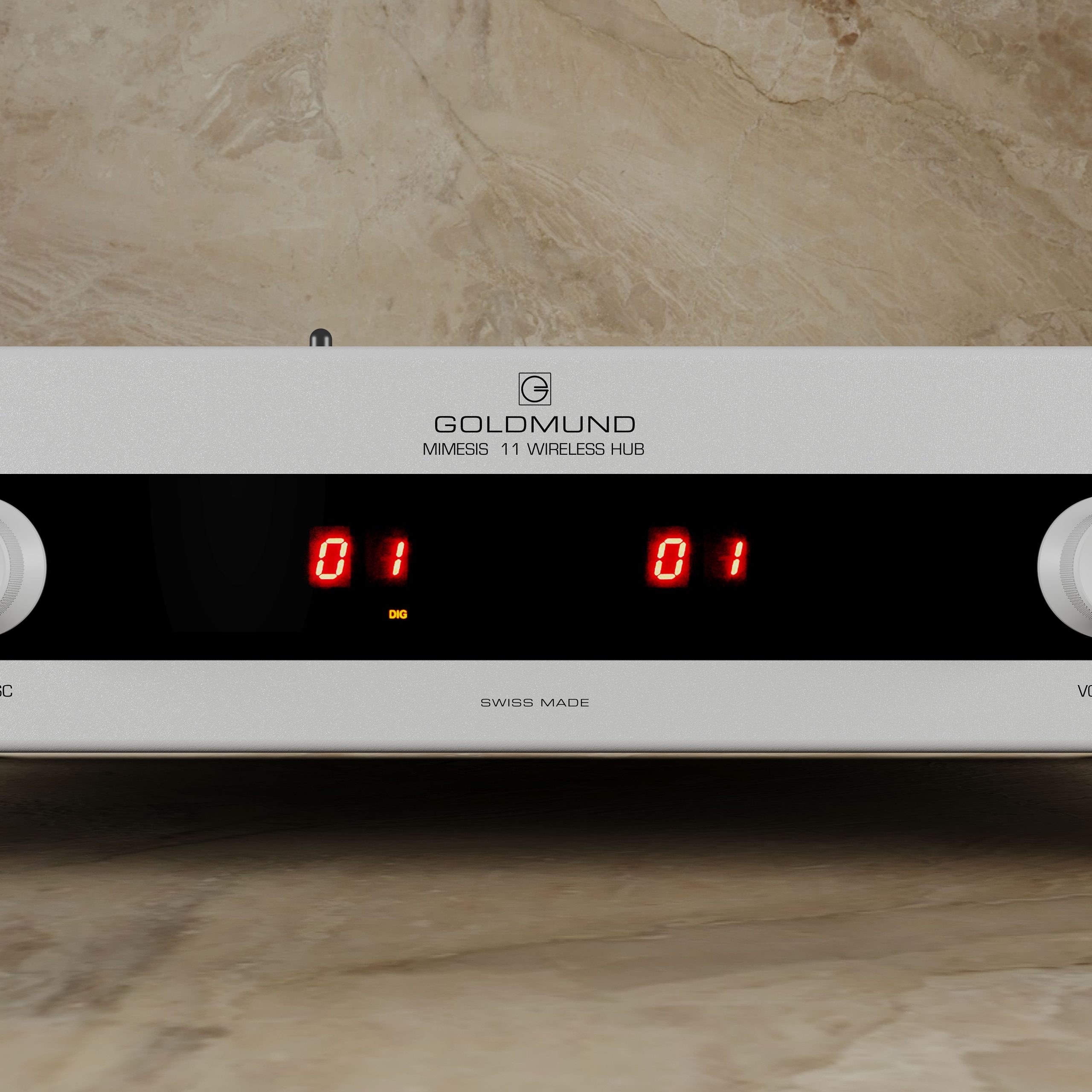

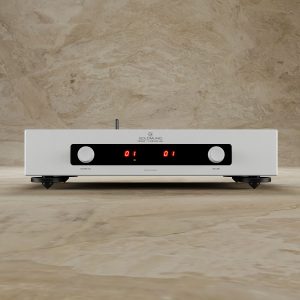

FRONT PANEL CONTROLS
2 knobs for input selection and volume control
Numeric displays for input selection
Numeric displays for volume
Power and lock LED
POWER
Nominal line voltage: 115 V or 230 V (switchable)
Input voltage range: +/- 10 %
Rated power consumption: 11 W
1,6 A delayed fuse
ON/OFF power switch key
Main voltage selector
SIZE & WEIGHT
44 W x 14 H x 37 D (cm)
17.3 W x 5.5 H x 14.2 D (inch)
8 kg
COLORS
Grey
