General

• Type: Reference Clock

• Options: GPS synchronization module

• Color: Silver (standard), Anthracite or Champagne (option)

• Dimensions: 440 x 440 x 133 mm (W x D x H)

• Weight: 20kg

• Operating conditions: 5°C<T<35°C, 5%<humidity<85% no condensation

• Power supply: Selectable 100V, 115V or 230V AC, 47Hz to 63Hz

• Power consumption: <0.5W standby, 50W warm-up, 40W nominal

User interface

• Display: 800 x 480 pixels, 24 bit RGB AMOLED

• Control: 5-button interface, Android app (iOS app to be released)

• Firmware update: via USB flash drive or the Internet

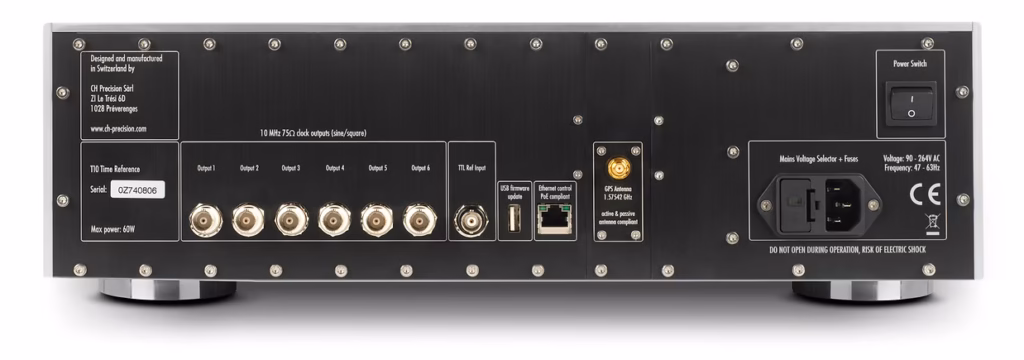

Output

• Type: 6x BNC

• Impedance: 75Ω

• Level: 500mVp-p or 1Vp-p, loaded with 75Ω

• Waveform: Sine or Square wave

Performance

• Phase noise:

  • < -105dBc/Hz @ 1Hz

  • < -125dBc/Hz @ 10Hz

  • < -145dBc/Hz @ 100Hz

  • < -155dBc/Hz @ 1kHz

  • < -165dBc/Hz @ 10kHz and above

• Nominal frequency:

  • 10MHz, +/- 20ppb, internal mode

  • 10MHz, +/- 1ppb maximum, GPS option locked for 1 hour

• External Reference Input level

  • 5V TTL

  • 50Ω BNC input

• Accepted Reference input frequencies: 1 PPS, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 100kHz

• Reference input frequency deviation maximum: +/- 0.1ppm
